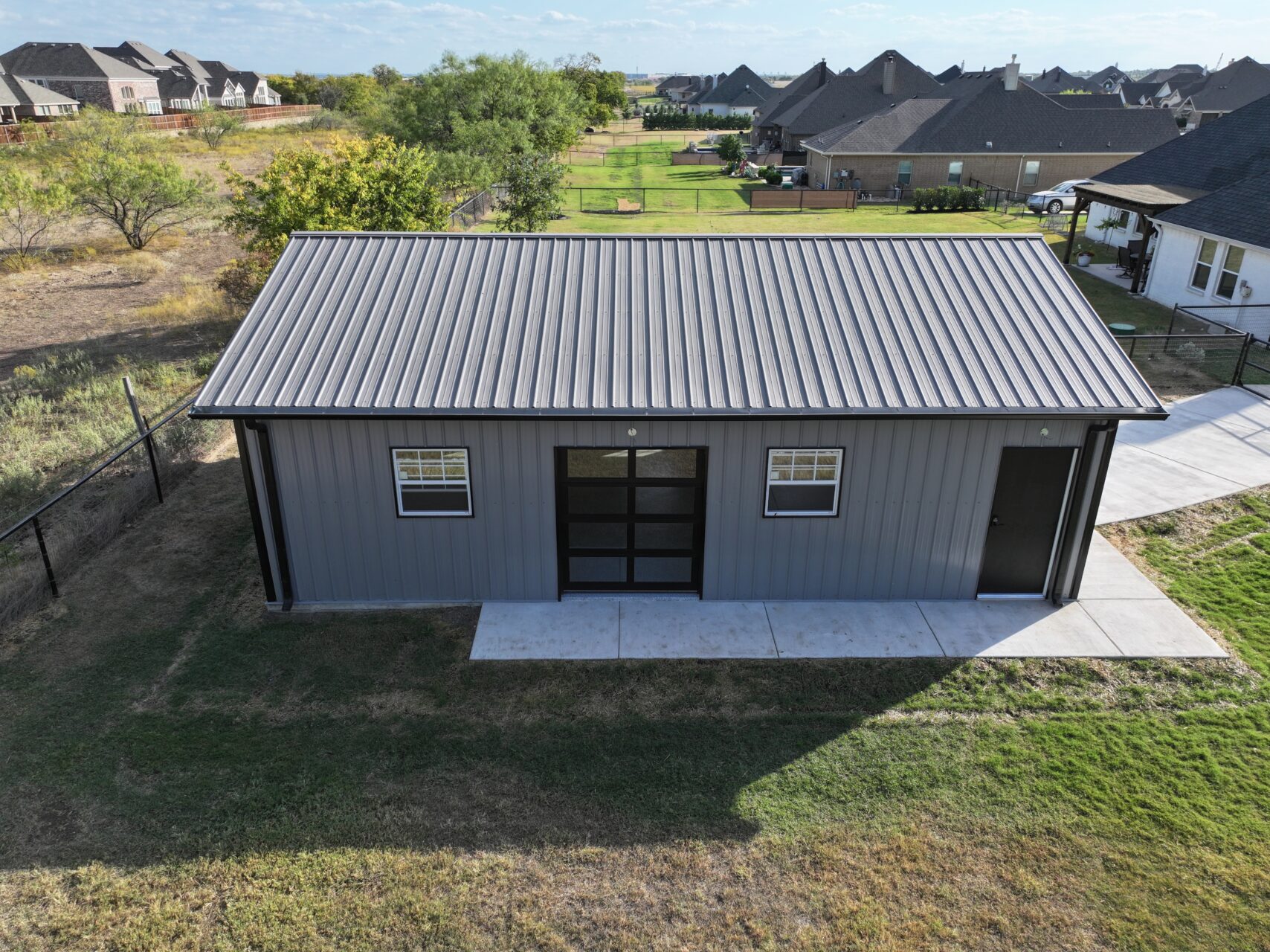

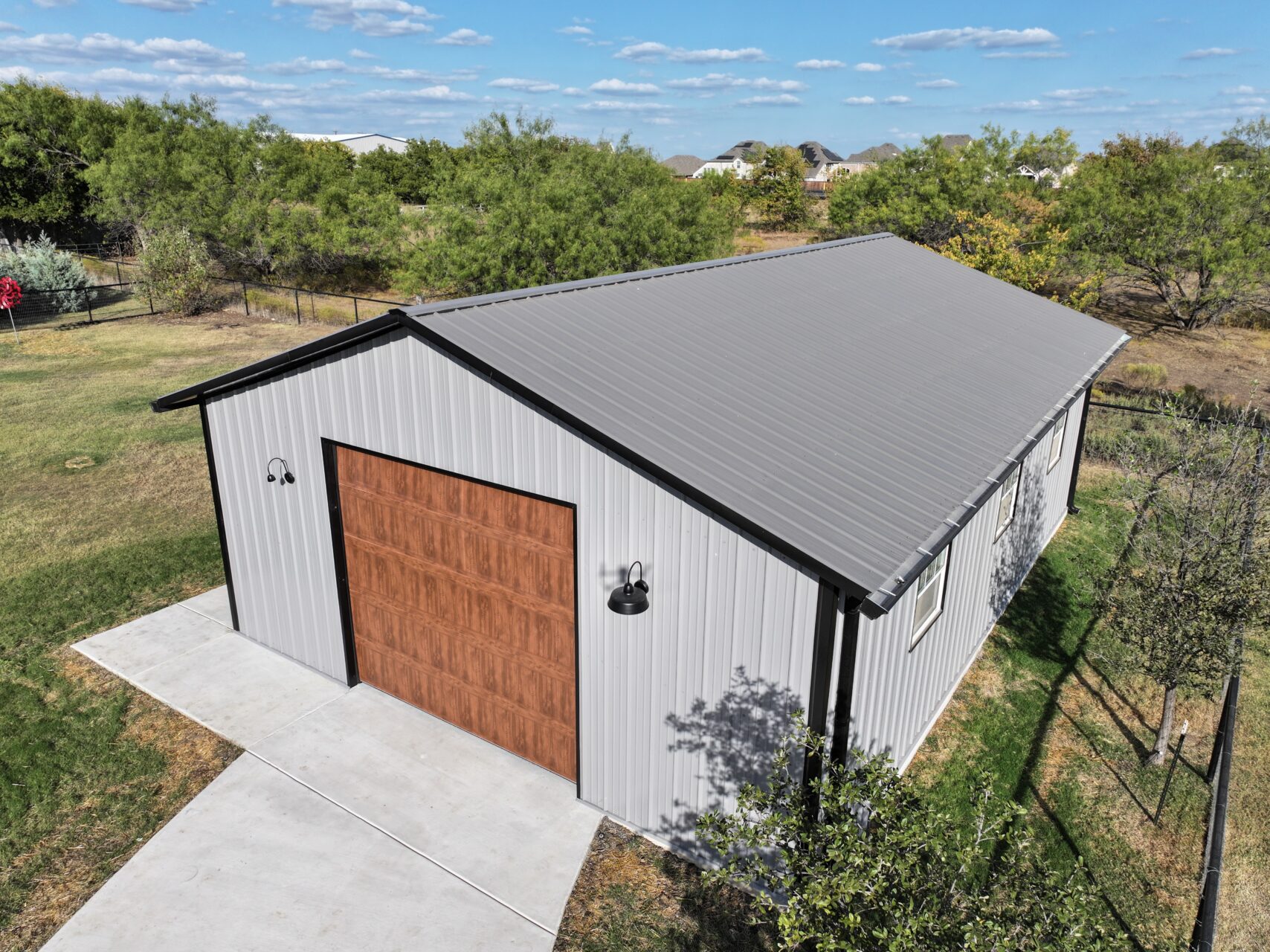

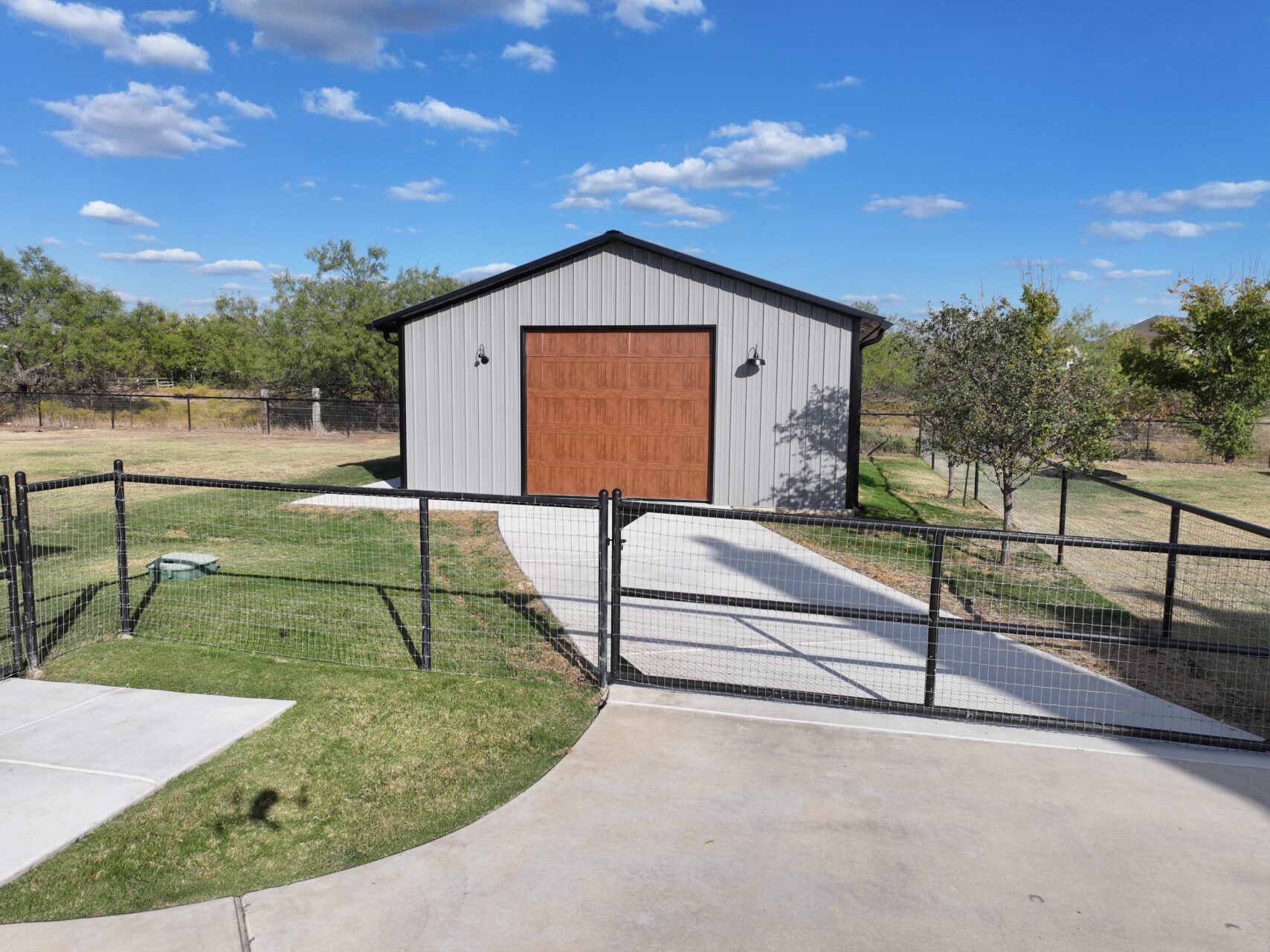

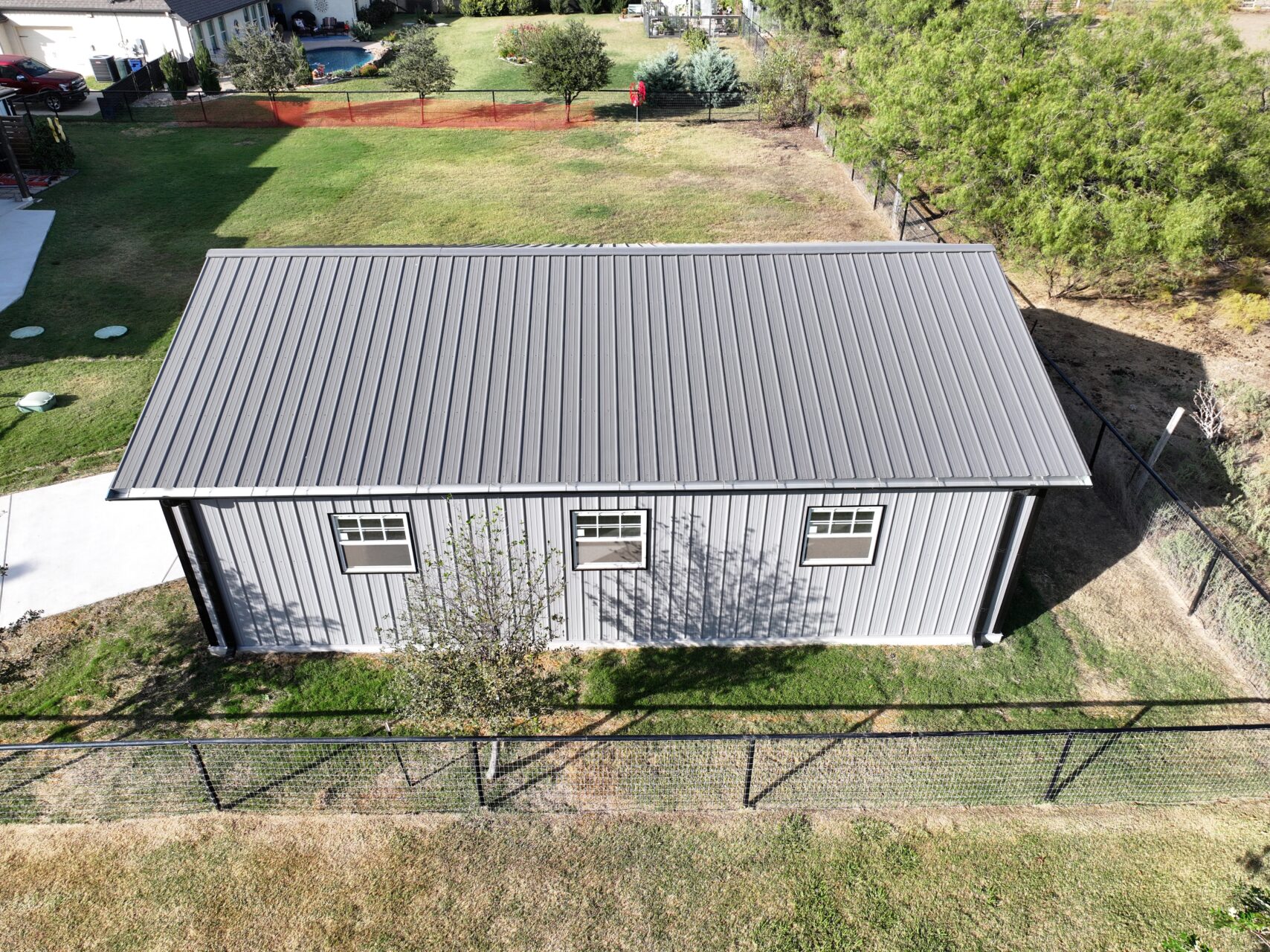

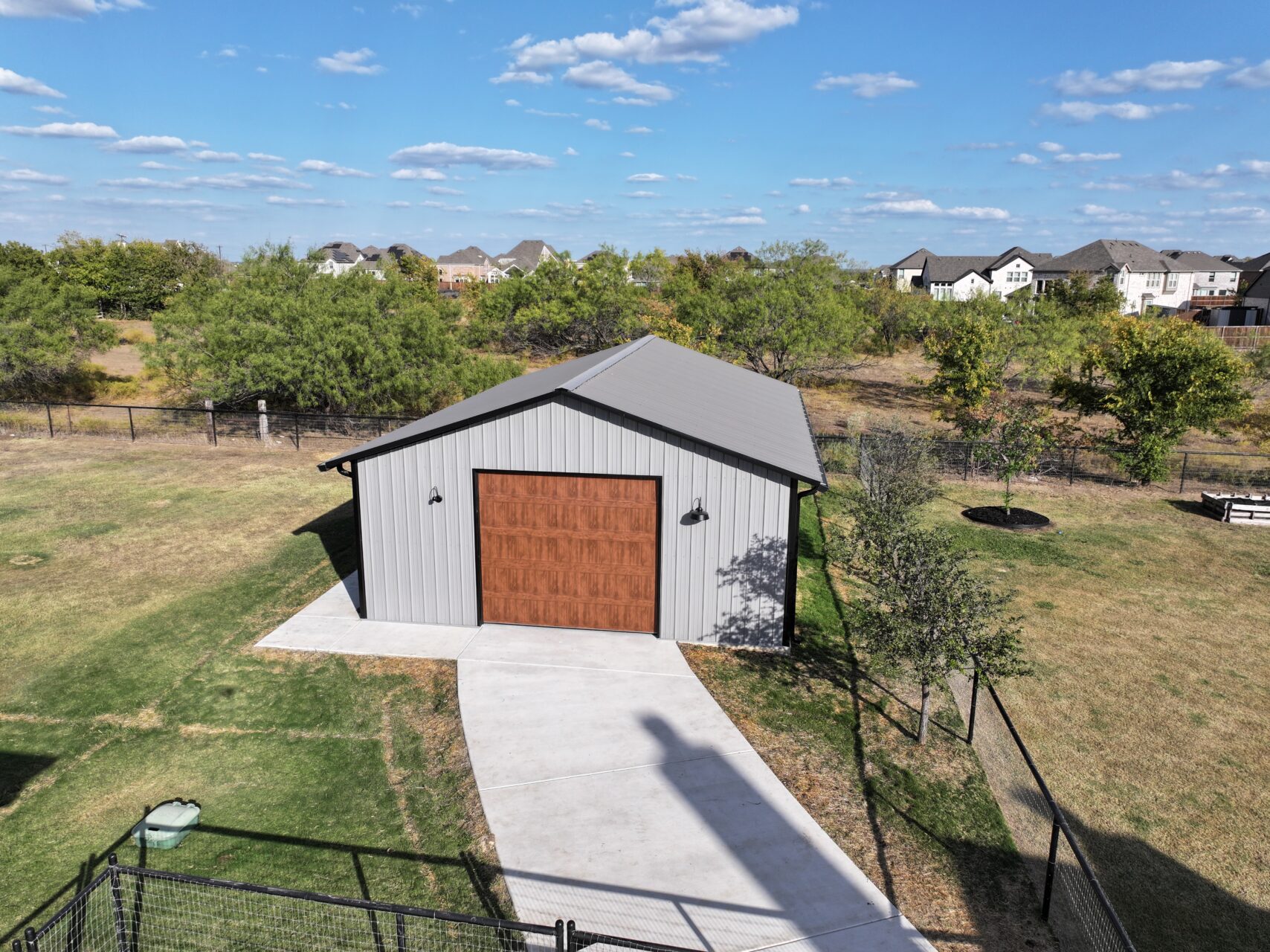

Pack, check out this 24×35 custom tubular metal workshop in Justin, Texas!
This custom tubular metal workshop with concrete is a combination of function and style. Built with a 14-gauge tubular frame and 29-gauge vertical panels in black and grey finish, spray foam insulation, with insulated doors and windows. It’s definitely your modern building! With custom frameouts and a reinforced concrete slab, it’s ready for serious work or hobby use.
Building Description:
- Building Dimension: 24′ Wide x 35′ Long x 9′ Talll
- 14 Gauge Tubular Frame
- 29 Gauge Metal Panels
- 4/12 Metal Roof Pitch
- A-Frame Vertical Roof
- 2 – Closed Sides (Vertical)
- 2 – Closed Ends (Vertical)
- 1 – 36″ W x 84″ H Heavy Duty Steel Door
- 2 – Custom Frameouts
- 6′ W x 7′ H and 10′ W x 9′ H
- 7 – 36″ W x 36″ H Double Pane Windows

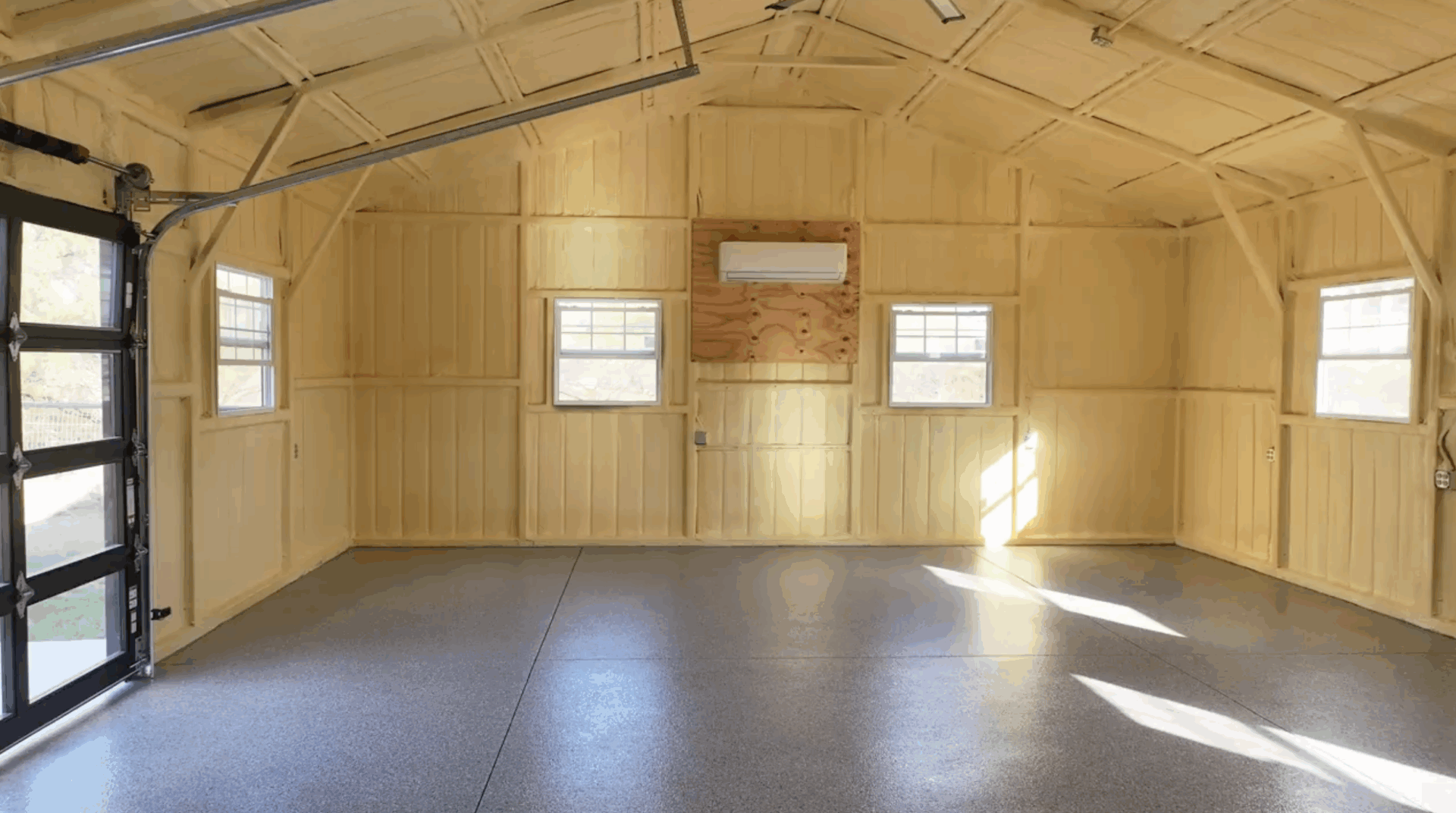

- 1″ Closed-Cell Spray Foam (Roof & Walls)
- Foam Gap Enclosures
- Base Trim
- Gutters & Downspouts
- Color Matching Screws
- 4″ Concrete Slab
- Perimeter Footing & Internal Cross Beams
- Notch Detail (Garage door and around the building)
- Site Prep and Driveway
- Colors:
- Roof: Quaker Grey
- Sides/Ends: Pewter Grey
- Trim: Black
- Gutters & Downspouts: Black
