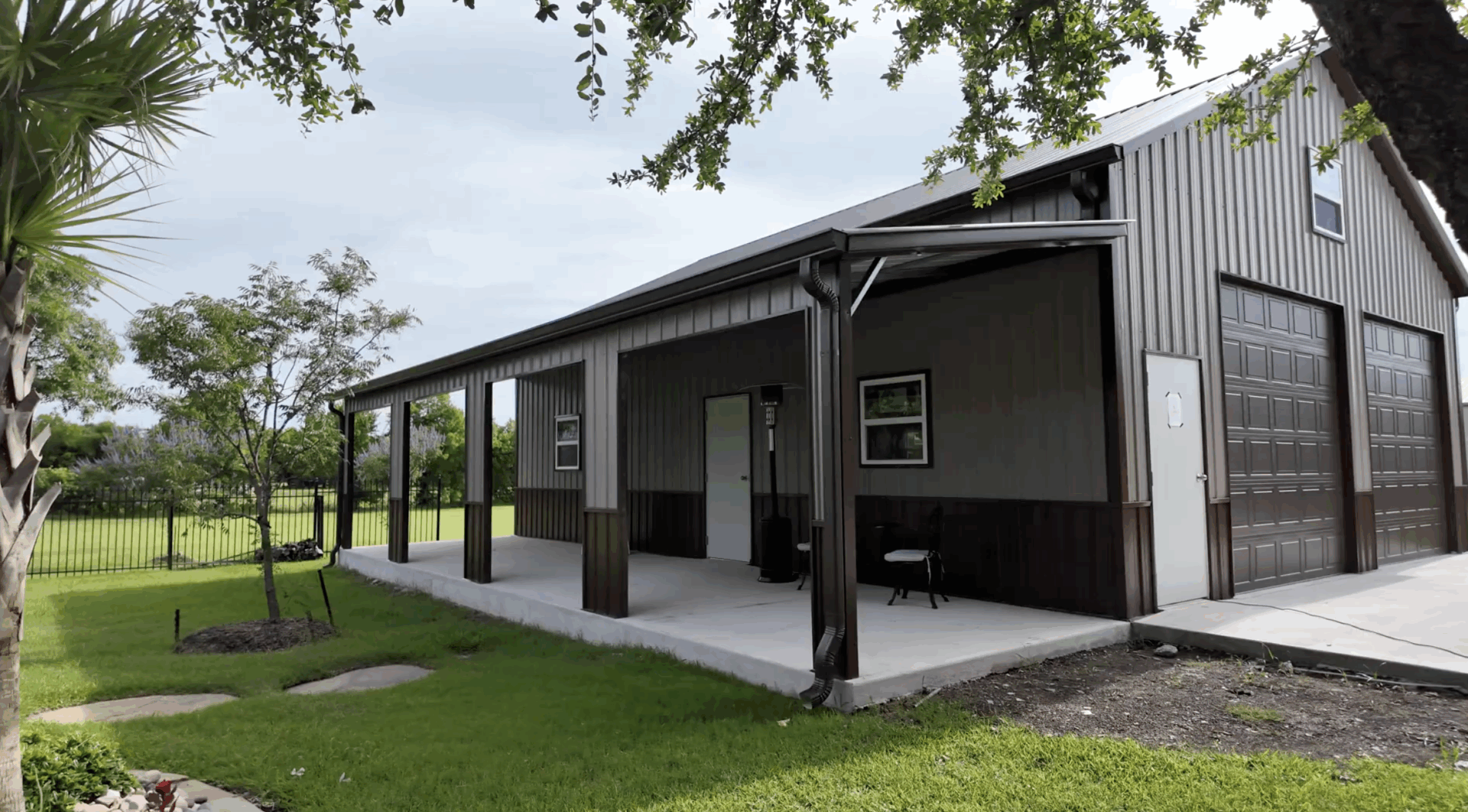

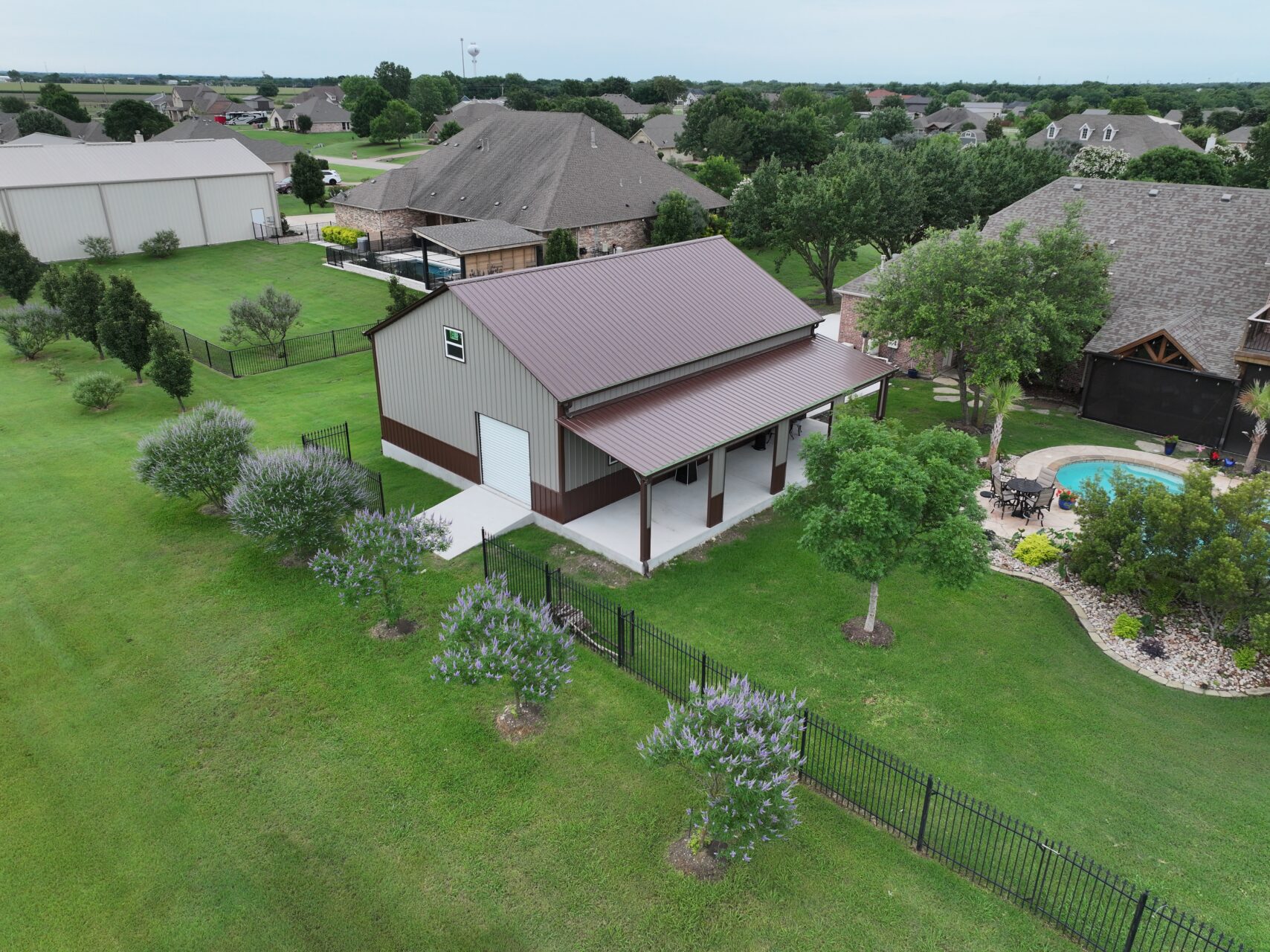

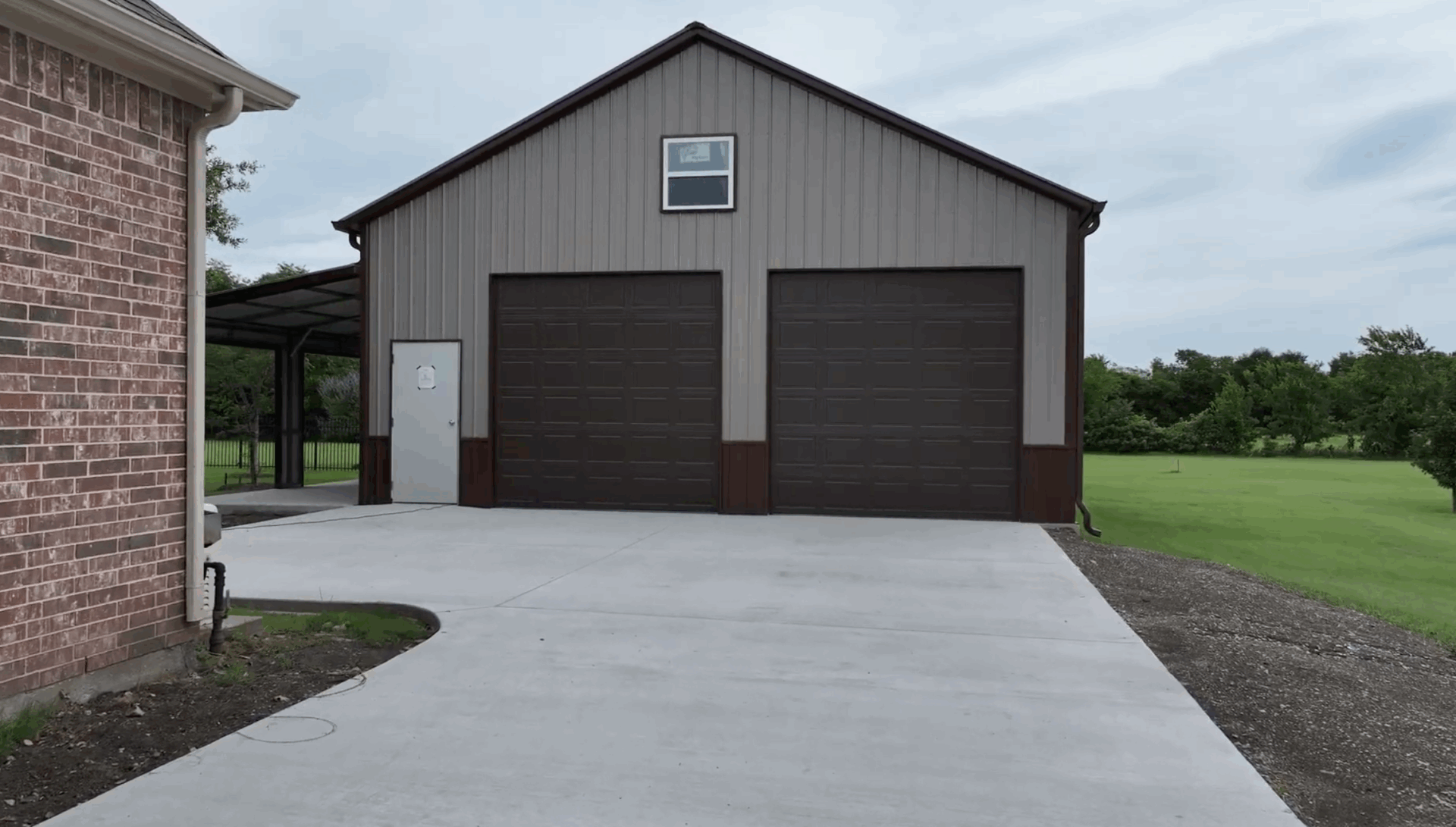

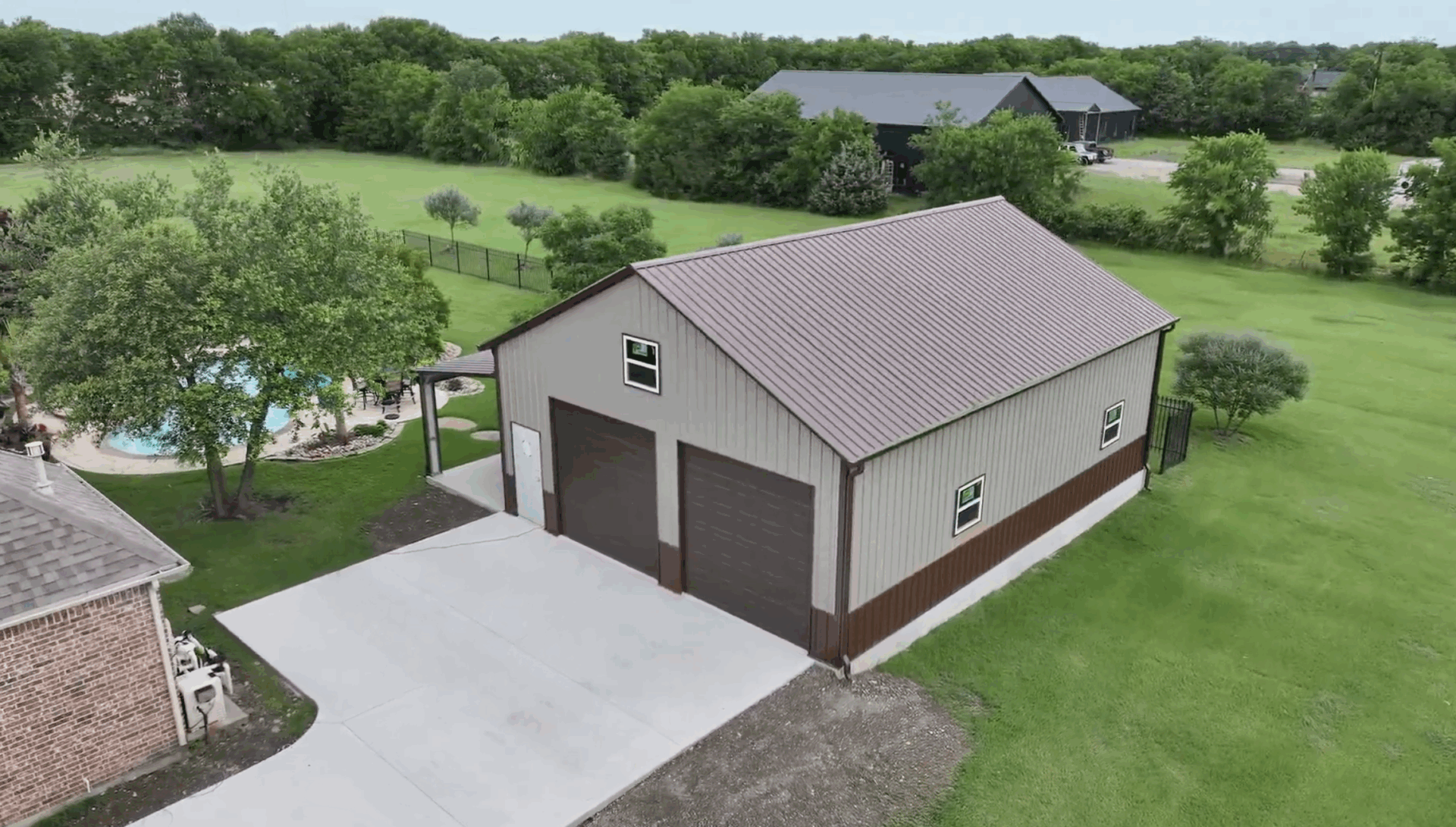

Pack, check out this 30×40 metal building with side porch in Lucas, Texas. This tubular metal building features a side porch, heavy-duty 12-gauge framing, 26-gauge vertical metal panel in clay and earth brown color combination, and a stunning 6/12 roof pitch for that spacious interior clearance.

Building Description:

• Main Building: 30′ Wide x 40′ Long x 12′ Tall
• Side Porch: 10′ Wide x 40′ Long x 10’/8′ Tall
• 12 Gauge Tubbing
• 26 Gauge Panels
• 6/12 Metal Roof Pitch
• A-Frame Vertical Roof
• 2 – Closed Sides (Vertical)
• 2 – Closed Ends (Vertical)

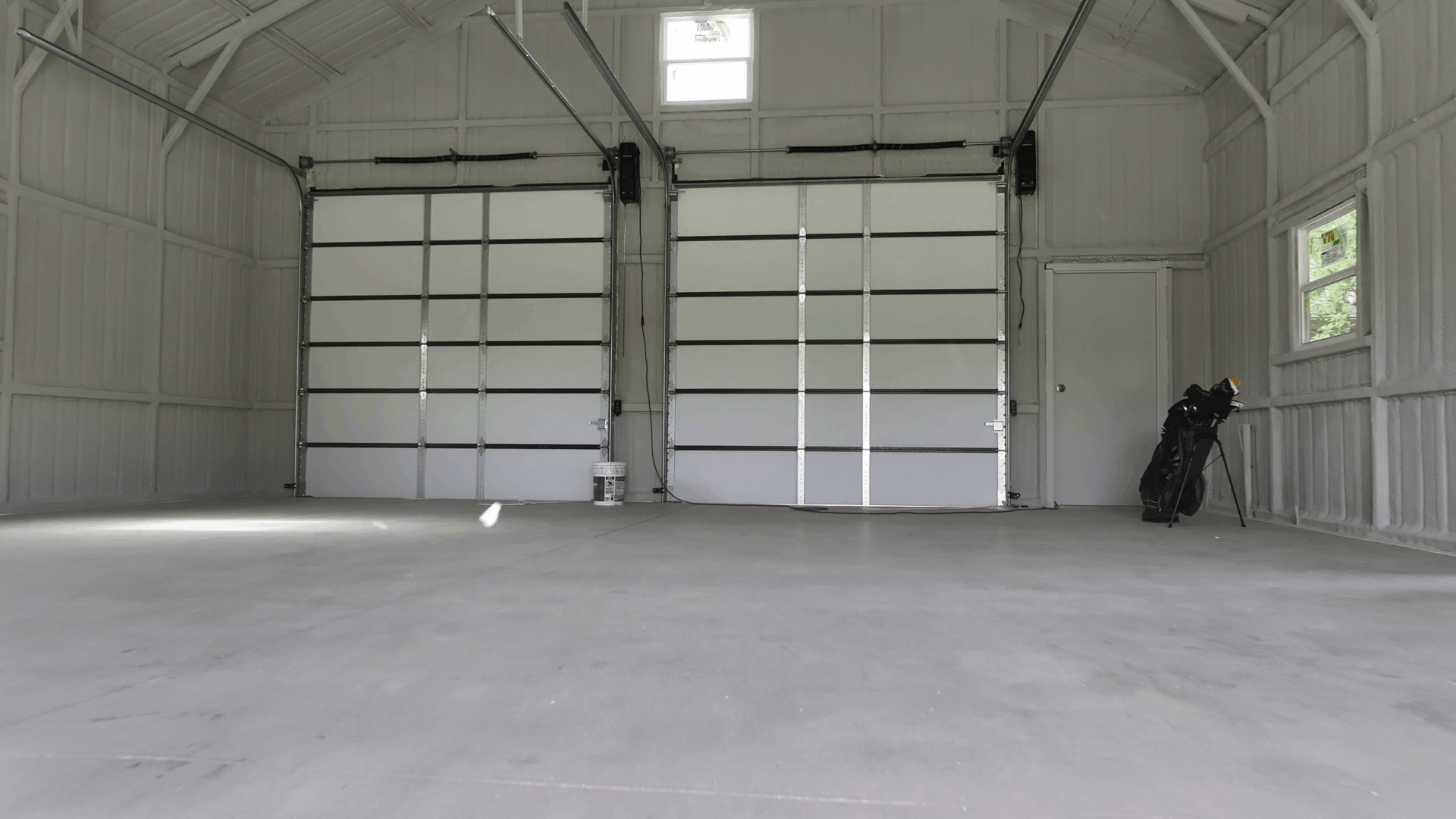

•  Insulated Overhead Garage Doors in Raised Short Panel Style
  • 2 – 10′ W x 10′ H Insulated (R6.8) with opener
• 1 – 8′ W x 8′ H Roll Up Door (with brush seal kit)
• 6 – 36″ W x 36″ H Double Pane Window (White)
• 2 – 36″ W x 84″ H Steel Door

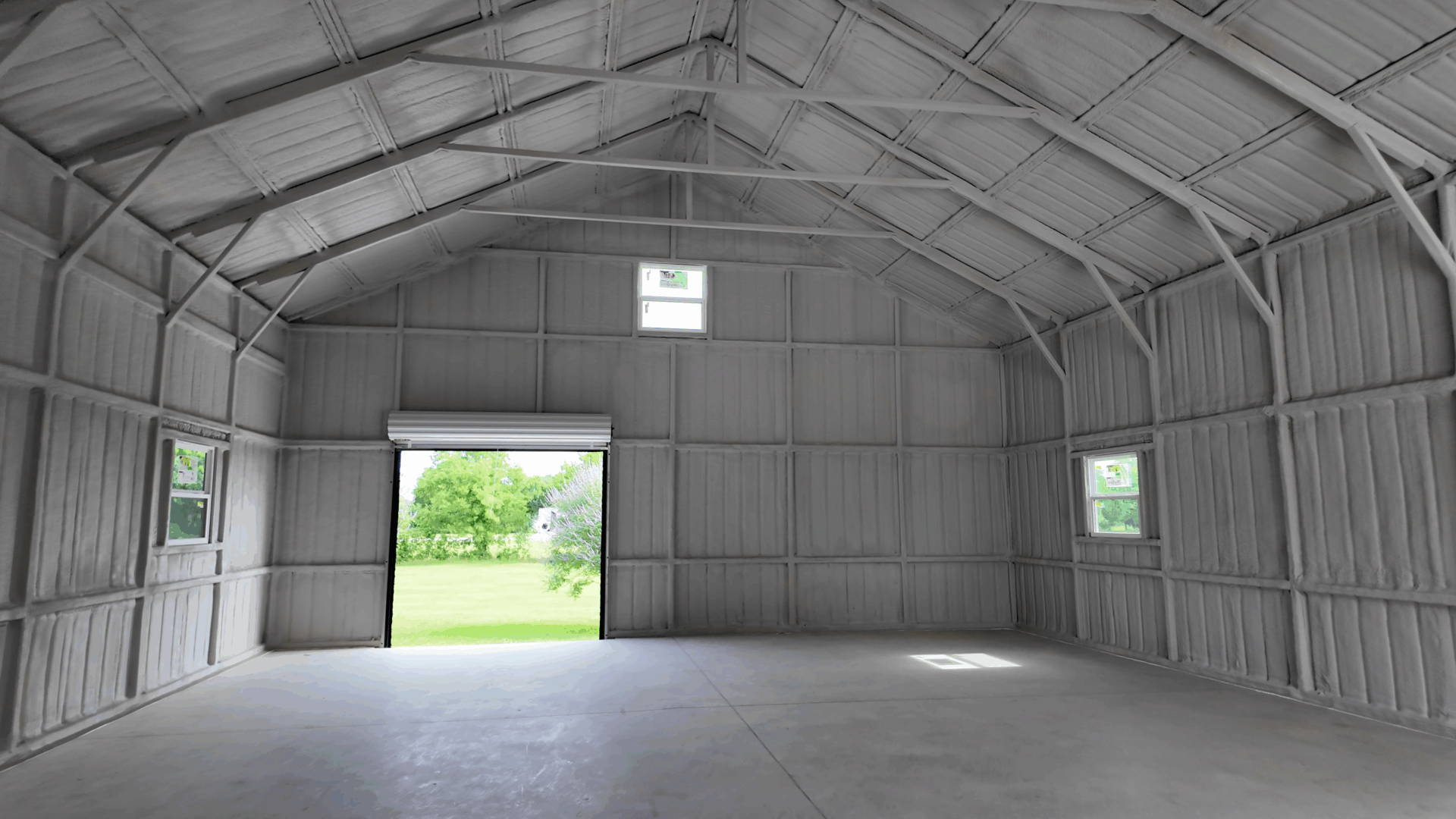

• 1″ Painted Closed-Cell Spray Foam (Roof & Walls)
  • Color: Iced Grey
• Foam Gap Enclosures
• Base Trim
• Gutter System
• Color Matching Screws
•  Colors:
  • Roof: Earth Brown
  • Sides/Ends: Clay
  • Trim/Gutters/Wainscot: Earth Brown

Concrete and site prep works were handled by the client.

Metal building in Texas

All metal buildings are fabricated to meet local codes. From design to building WolfSteel is your one-stop shop for tubular metal building, weld-up metal building, bolt-up metal buildings, concrete, insulation, and permit assistance. We are committed to creating a hassle free turnkey project experience.
