40×30 All White Detached Metal Garage in Lexington, Texas 78947
- Home »
- 40×30 All White Detached Metal Garage in Lexington, Texas 78947

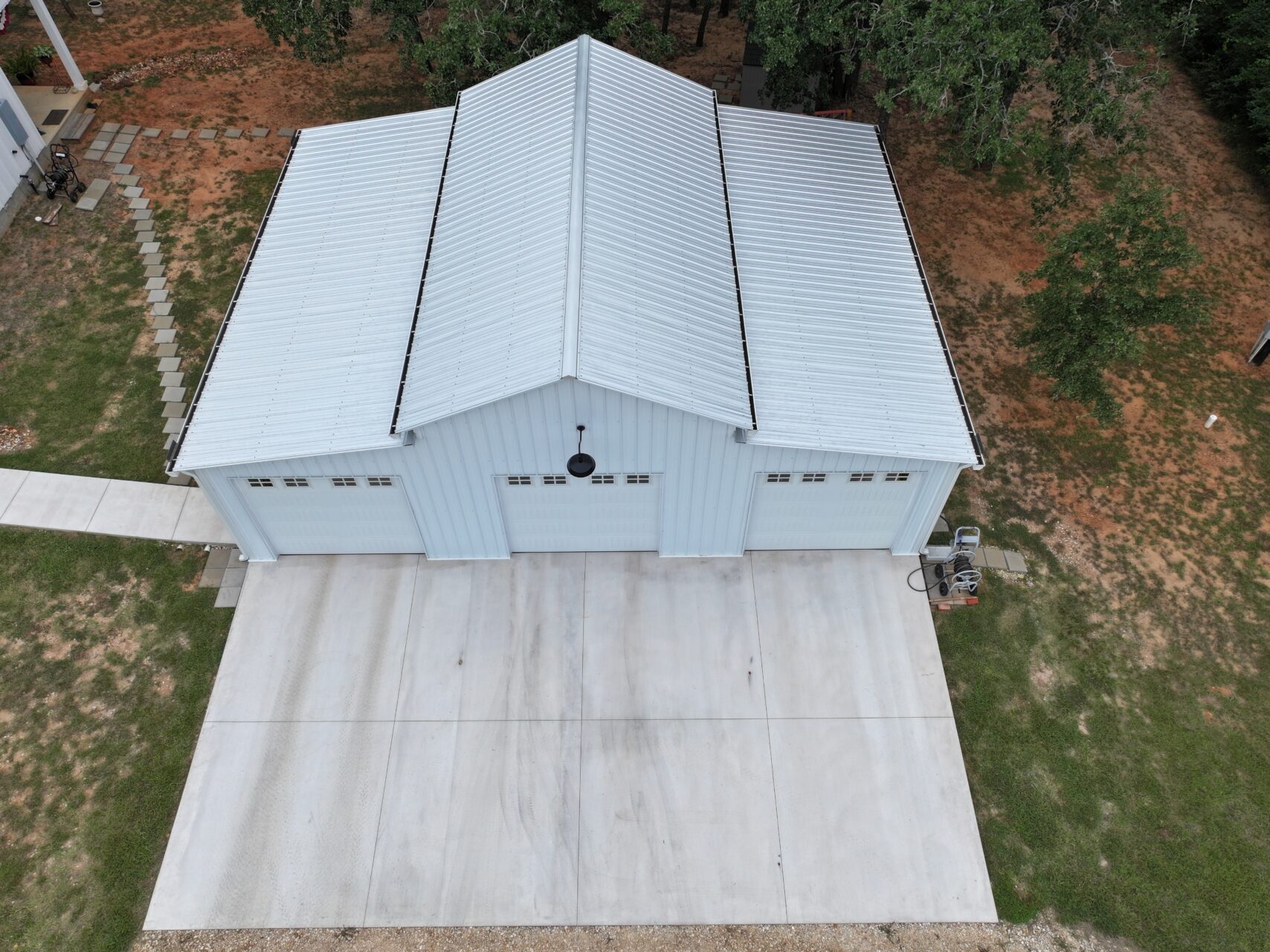

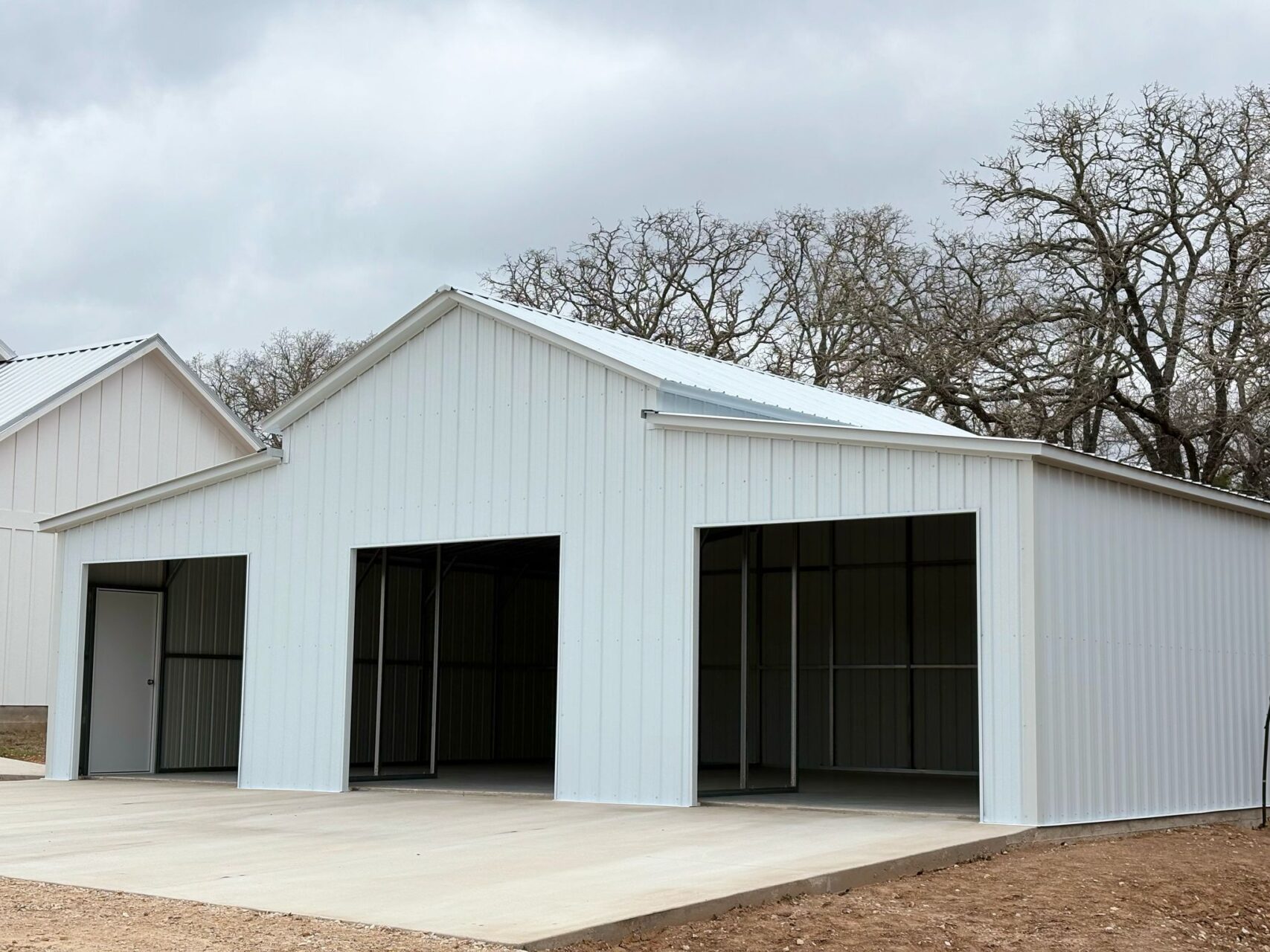

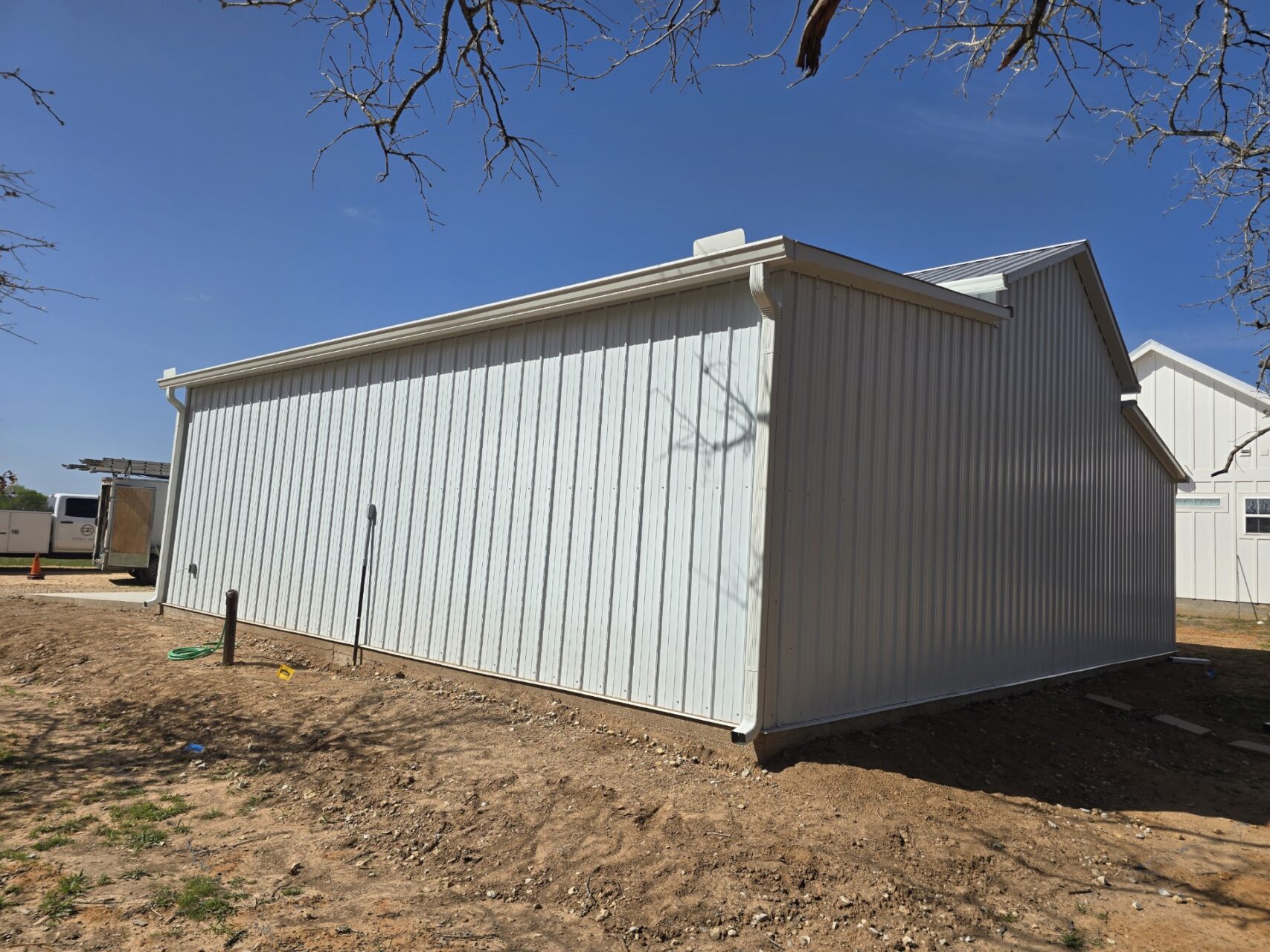

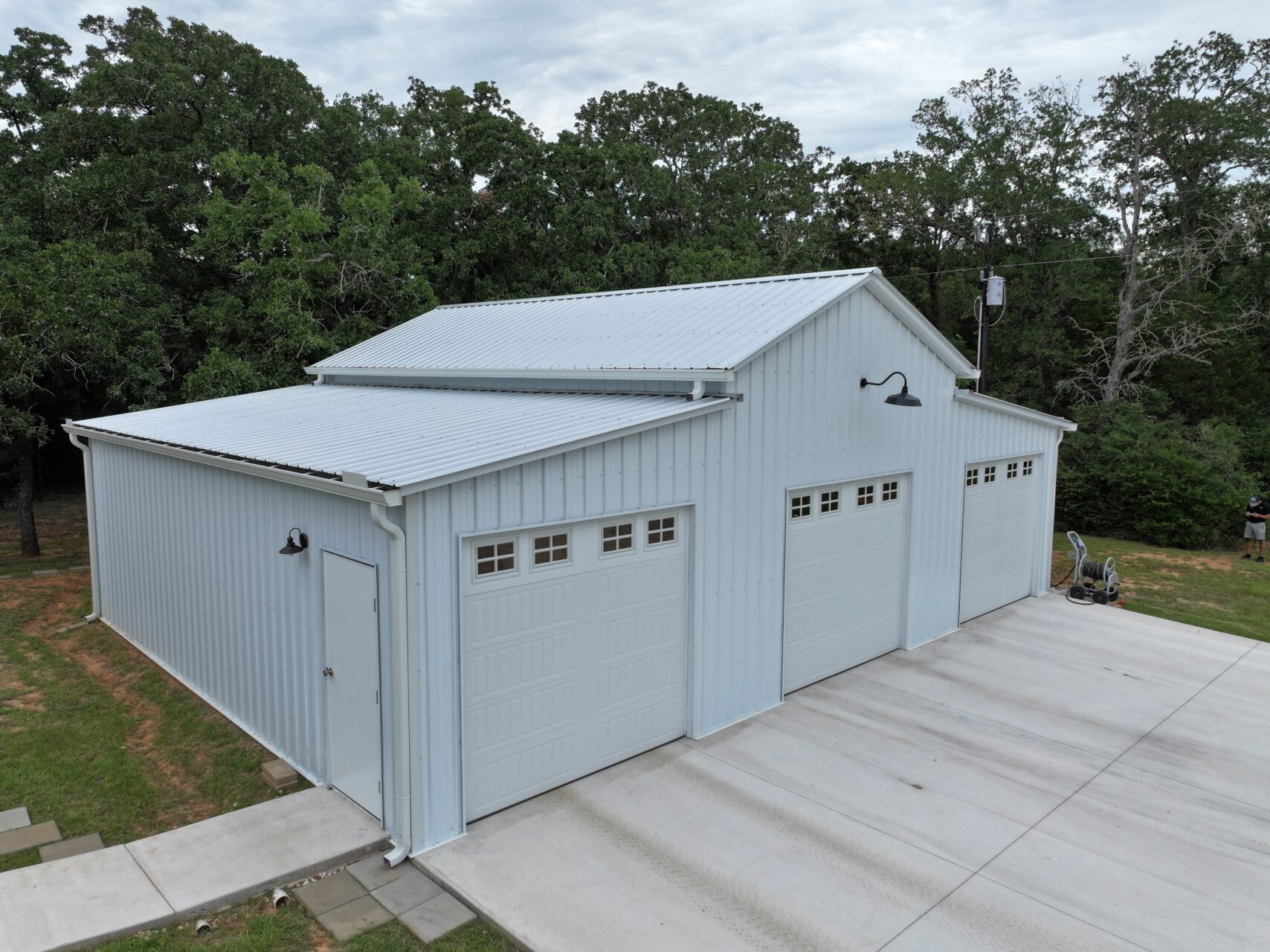

Pack, check out this sleek all-white 40×30 detached metal garage in Lexington, Texas!
This custom build features a durable 12-gauge tubular frame, 26-gauge AG metal panels, a bold 5/12 roof pitch, and full spray foam insulation throughout. Clean, strong, and built to last, this 40×30 detached metal garage delivers both form and function.
Building Description:
- Overall Building Dimension: 40′ Wide x 30′ Long x 12′ Tall
- Center Building: 16′ Wide x 30′ Long x 12′ Tall
- Left & Right Lean-tos: 12′ Wide x 30′ Long x 11/9′ Tall
- 12 Gauge Tubular Frame
- 26 Gauge Metal Panels (Roof & Walls)
- 5/12 Metal Roof Pitch
- A-Frame Vertical Roof
- 2 – Closed Sides (Vertical)
- 2 – Closed Ends (Vertical)
- 3 – 9′ W x 8′ H Overhead Garage Door with Opener & Windows
- Insulated (R10) in Long Carriage Style Panel
- 2 – 14′ W x 10′ H Frameouts

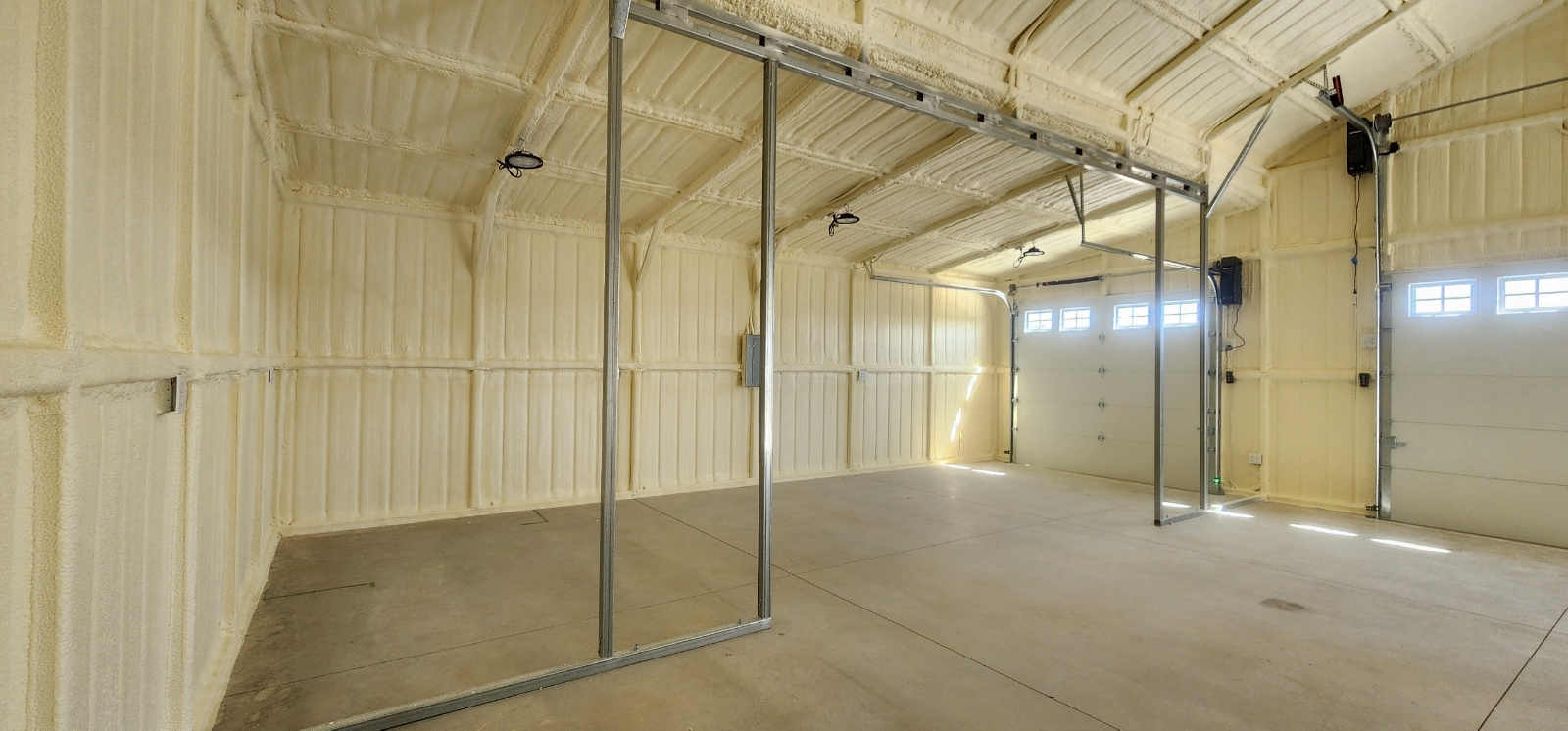

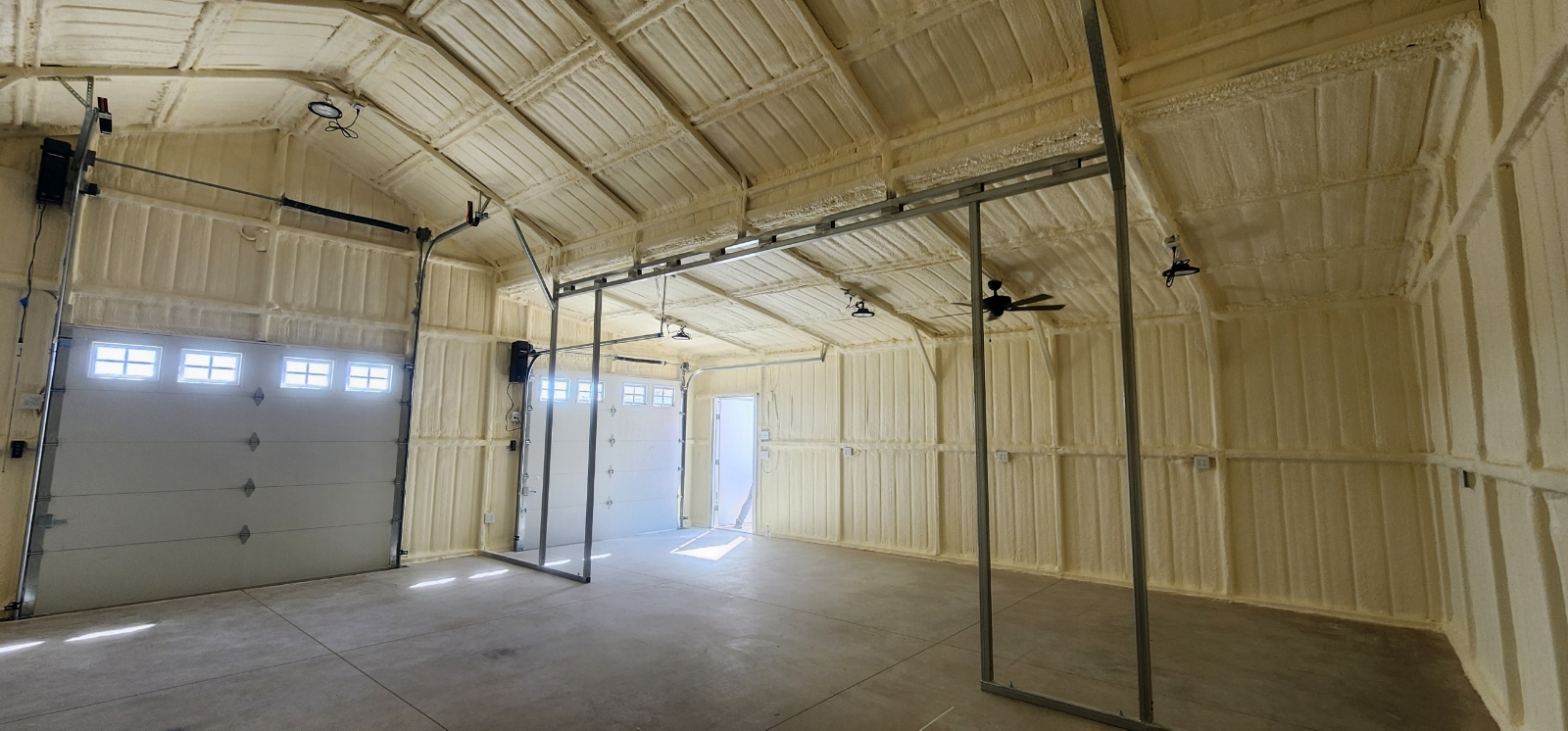

- 1″ Closed-Cell Spray Foam (Roof & Walls)
- Foam Gap Enclosures
- Base Trim
- Gutters & Downspouts
- Color Matching Screws
- 4″ Concrete Slab
- Perimeter Footing & Internal Cross Beams
- Notch Detail (Garage door and around the building)
- Colors:
- Roof: Galvalume
- Sides/Ends: White
- Trim: White
- Gutters & Downspouts: White
Metal building in Texas
All metal buildings are fabricated to meet local codes. From design to building WolfSteel is your one-stop shop for tubular metal building, weld-up metal building, bolt-up metal buildings, concrete, insulation, and permit assistance. We are committed to creating a hassle free turnkey project experience.
