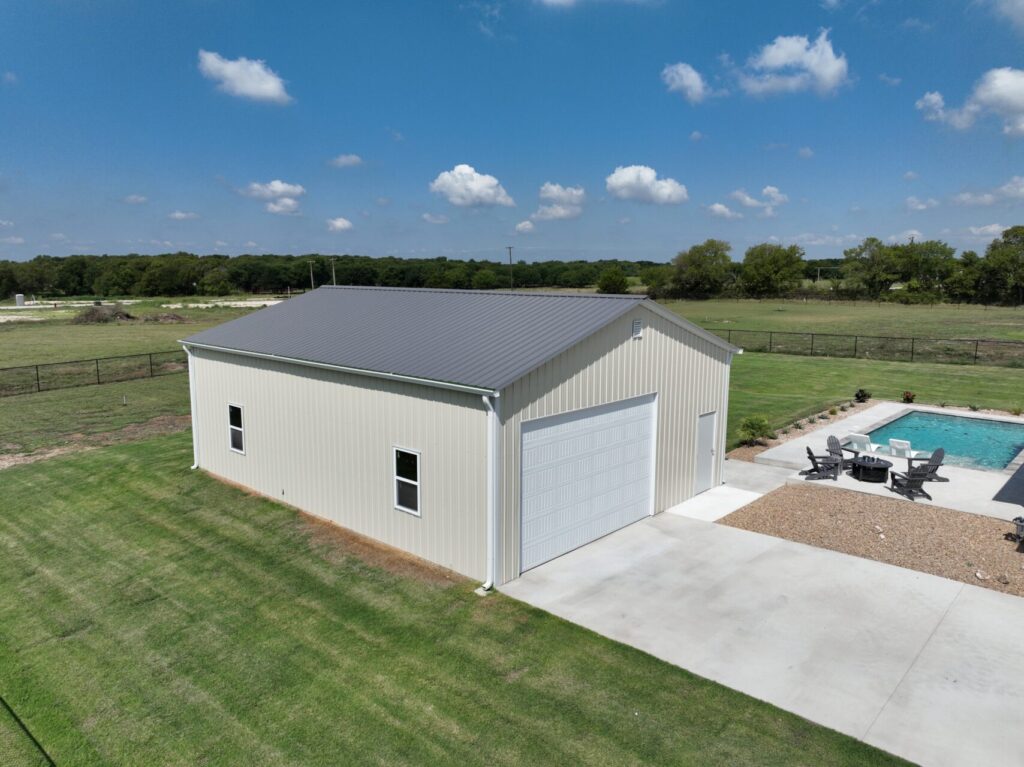

30×40 Tubular Detached Metal Garage with Closed Lean-to in Waxahachie, Texas 75167

Pack, check out this 30x40 tubular detached metal garage in Waxahachie, Texas!

This garage is a perfect blend of durability and style, making it a great addition to our client's property. It features a 12-gauge tubular frame, 26-gauge vertical panels, iced grey spray foam insulation, and a clean grey and light stone finish.

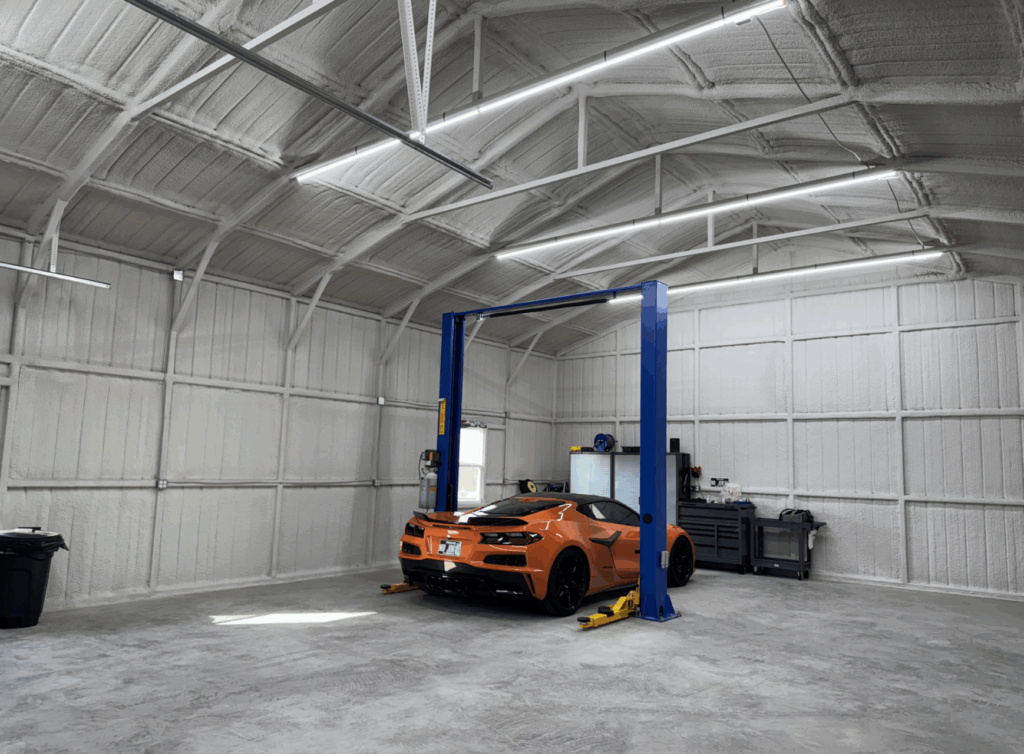

And that’s not all, the foundation has been customized to support a car lift that the client plans to install in the garage. Built for strength, built for purpose!

Building Description:

• Main Building Dimension: 30' Wide x 40' Long x 12' Talll

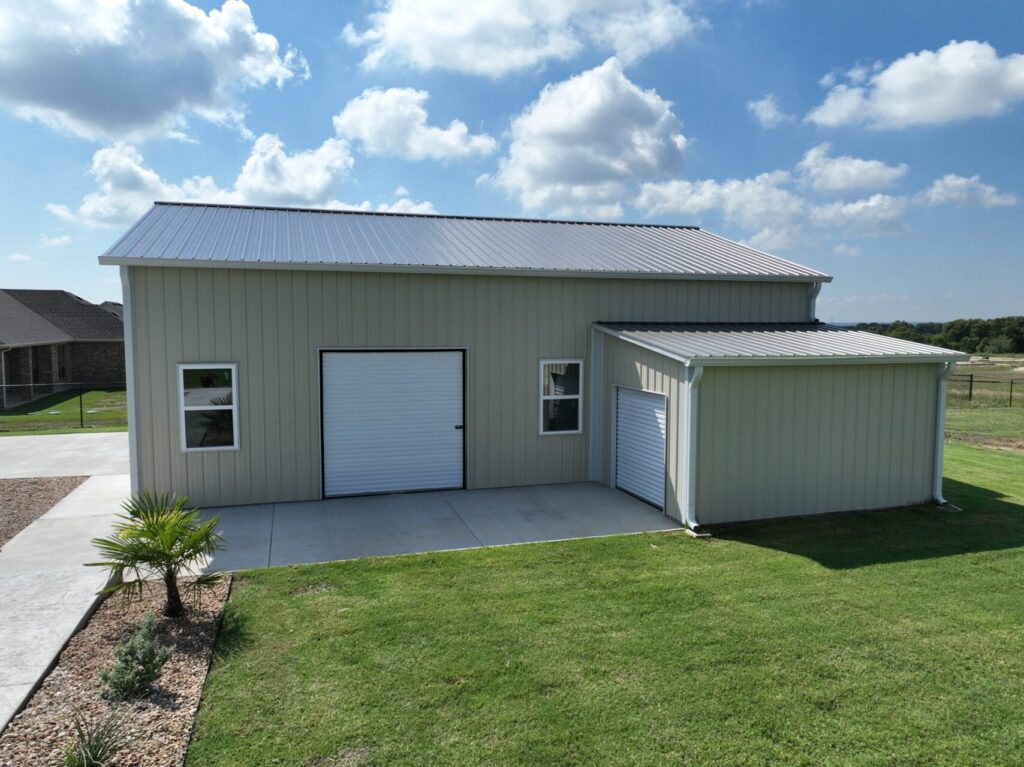

• Closed Lean-to: 10' Wide x 15' Long x 9/7' Tall
• 12 Gauge Tubular Frame
• 26 Gauge Metal Panels (Roof & Walls)
• 3/12 Metal Roof Pitch
• A-Frame Vertical Roof
• 2 - Closed Sides (Vertical)
• 2 - Closed Ends (Vertical)

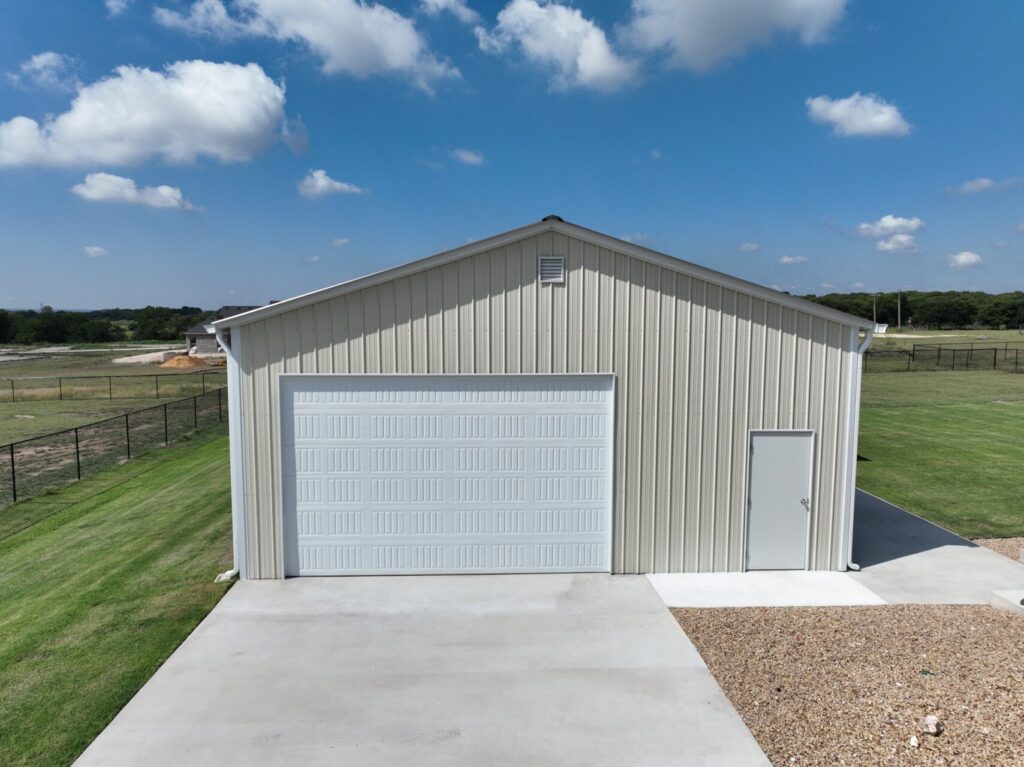

• 1 - 16' W x 10' H Overhead Garage Door with Opener
•  2 - Roll Up Door with Brush Seal
  • 8' W x 8' H and 6' W x 6' H
• 2 - 36" W x 84" H Heavy Duty Steel Door
• 4 - 30" W x 53" H Double Pane Windows
• 1 - 12" W x 12" H Vent

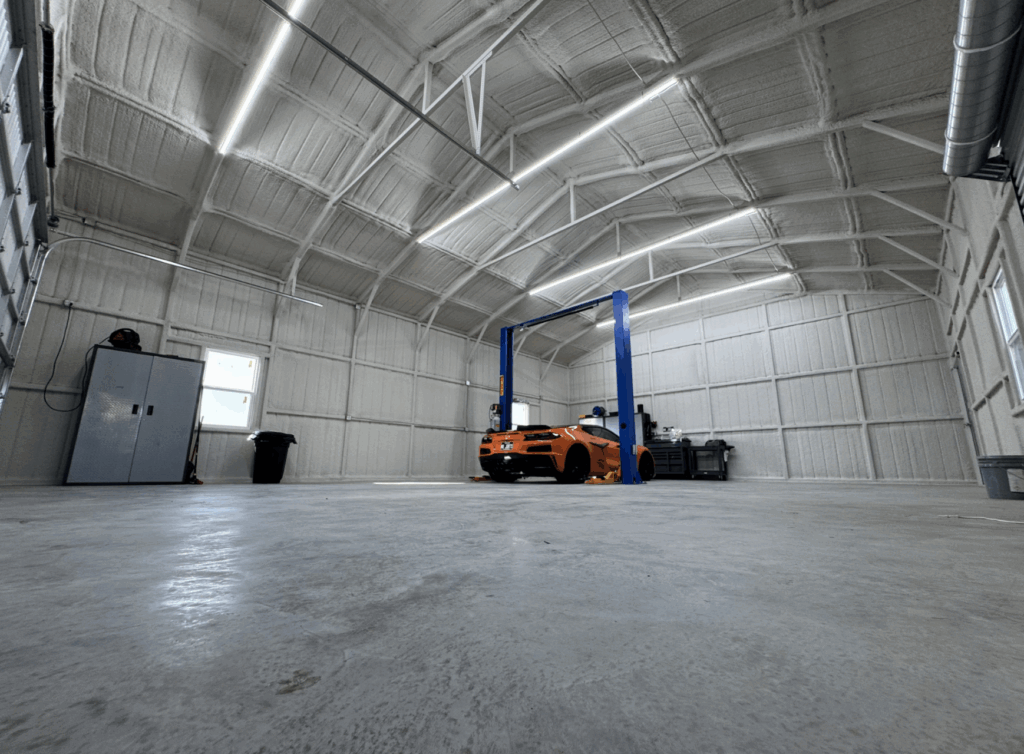

• 1" Painted Closed-Cell Spray Foam (Roof & Walls)
  • Color: Iced Grey
• Foam Gap Enclosures
• Base Trim
• Gutters & Downspouts
• Color Matching Screws
• 4" Concrete Slab
• Perimeter Footing & Internal Cross Beams
• Notch Detail (Garage door and around the building)
• Site Prep and Driveway
• Permit Assistance
•  Colors:
  • Roof: Quaker Grey
  • Sides/Ends: Light Stone
  • Trim: White
  • Gutters & Downspouts: White

Metal building in Texas

All metal buildings are fabricated to meet local codes. From design to building WolfSteel is your one-stop shop for tubular metal building, weld-up metal building, bolt-up metal buildings, concrete, insulation, and permit assistance. We are committed to creating a hassle free turnkey project experience.

If you want to design your own online within minutes- Tubular or Red Iron !

Check out more WolfSteel projects here!

Have other dimensions in mind? Let us know!
