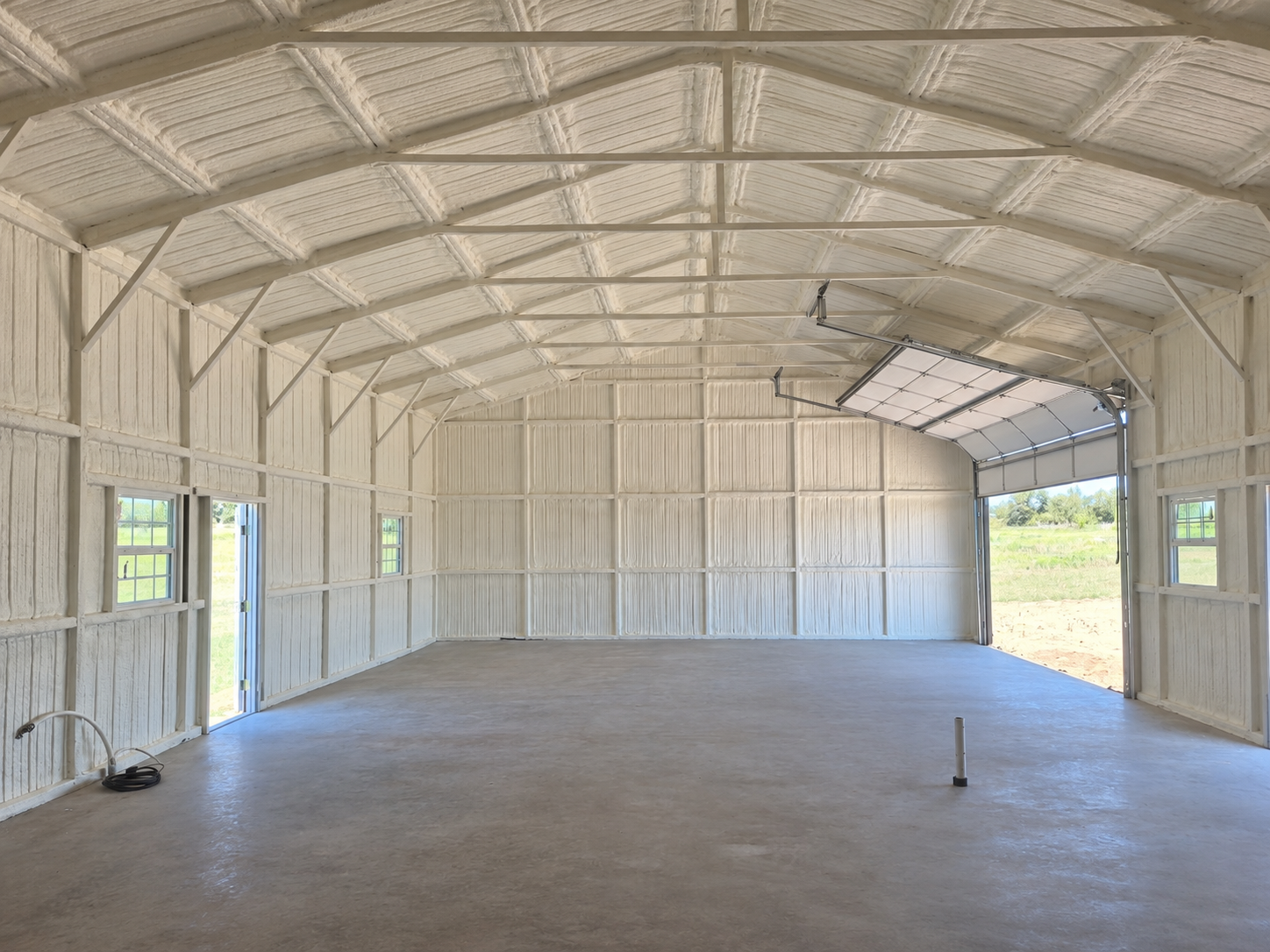

Texas Metal Building with Closed-Cell Spray Foam
Spray foam insulation remains one of the most popular choices among our clients for their Texas metal buildings. It provides excellent thermal performance, helps seal air leaks, and creates a more comfortable environment inside the building year-round.
But here’s the catch! During installation, spray foam can ooze through the gaps in your metal panels, creating a difficult-to-clean mess.
Fortunately, you can prevent this with foam gap enclosures. These enclosures seal panel openings before insulation is applied, minimizing spray foam ooze while maximizing the building’s internal R-value.
R-value is a measure for how well your insulation slows heat from moving through your metal building. The higher the R-value, the harder it is for that Texas heat to make its way inside. It won’t create cold air, but it helps keep the air you’ve already cooled from escaping and keeps outside heat from coming in.
Understanding Spray Foam on Metal Buildings
Spray foam insulation is widely used in metal buildings because it delivers multiple benefits beyond temperature control.
Some of the key advantages include:
- Helps in reducing heat transfer and moisture build up
- Lowers energy cost due to improved thermal control inside the building.
- Creates a more comfortable condition inside the building
- Seals small cracks and gaps that traditional insulation may miss
One of the reasons spray foam performs so well is that it expands after application. As the foam grows, it fills the gap as well as hard-to-reach spaces, and creates a continuous insulation barrier.
However, that same expansion can create challenges if the building is not properly prepared before installation. Without addressing panel gaps and corrugations beforehand, expanding foam can push through openings and create unwanted problems on the exterior of the building.
Spray Foam vs Corrugation on Metal Building Panels
Metal buildings are typically constructed using corrugated steel panels. These panels feature a series of ridges and valleys that provide strength and structural integrity.
While corrugated panels are highly effective, they naturally create openings along:
- Roof lines
- Eaves
- Ridge caps
- Wall transitions
- Panel edges

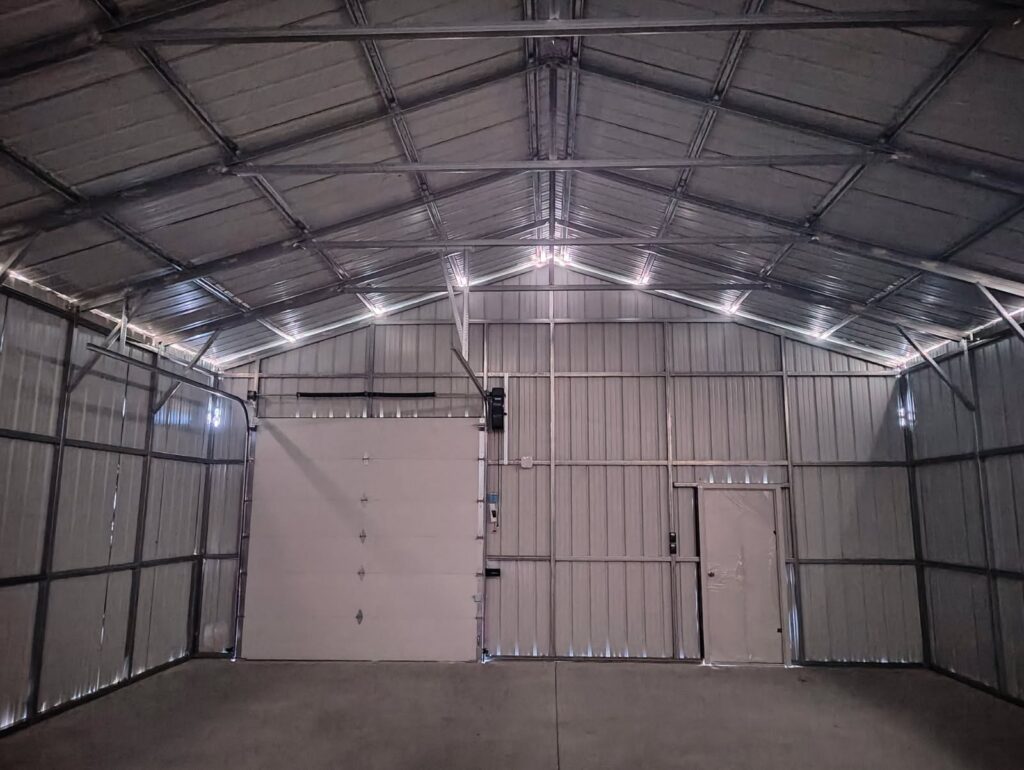

Before you apply insulation, these openings allow light, dust, insects, and small critters to enter the building, just like in the image below.

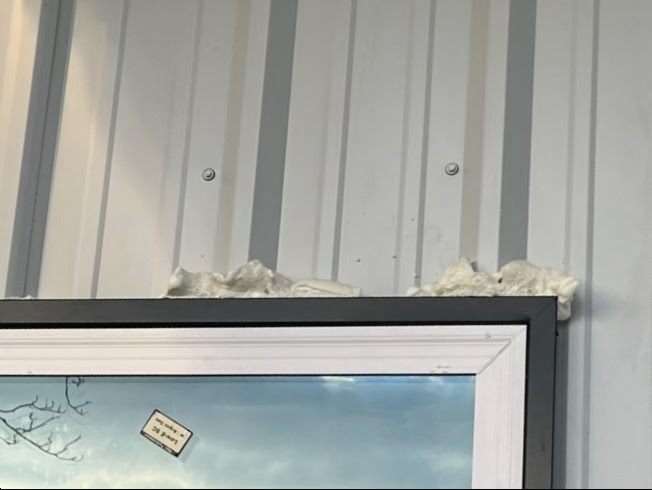

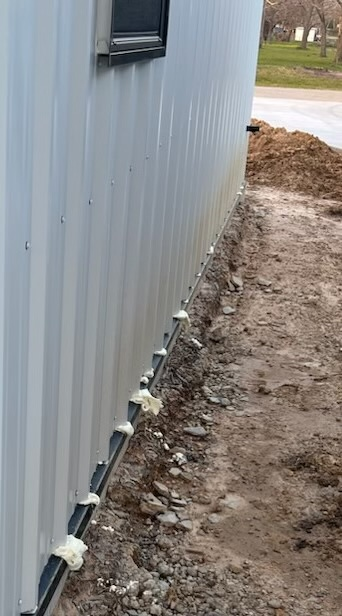

When spray foam insulation is applied without sealing these openings first, the expanding foam can push through the corrugations and ooze out of the building.
Once the foam hardens, removing it becomes extremely difficult. Cleanup often requires scraping, cutting, and additional labor that could have been avoided with proper preparation.
In addition to appearance concerns, uncontrolled foam expansion can result in wasted material and a less professional finished product.
How Foam Gap Enclosures Help Your Metal Building?

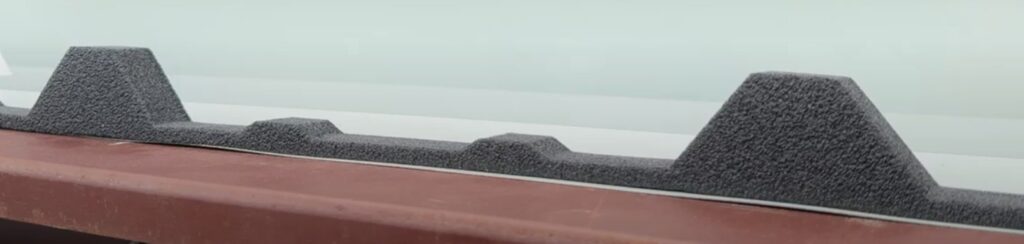

Foam gap enclosures, sometimes called foam closure strips, are specially designed foam pieces installed along the corrugations and gaps found in metal building panels.
Their primary purpose is to seal these openings before spray foam insulation is applied.
Foam gap enclosures are commonly installed around the top and bottom perimeter of the building, as well as other locations where corrugated panel openings occur.
By creating a barrier between the panel gaps and the spray foam, these closure strips help ensure a cleaner and more controlled insulation installation.
Benefits of Foam Gap Enclosures
1. Prevent Spray Foam From Oozing Out
The most obvious benefit is preventing expanding foam from pushing through panel openings. This helps eliminate messy exterior foam buildup and reduces cleanup time.
2. Block Light and Air Gaps
Foam gap enclosures help seal the natural openings in corrugated panels, thus reducing air infiltration and improve the overall airtightness of the building.
3. Create a Cleaner Finished Appearance
A properly prepared building looks more professional after insulation is installed. Foam remains where it belongs, and the exterior maintains a cleaner appearance.
4. Improve Overall Insulation Performance
By sealing openings before insulation is applied, foam gap enclosures help maximize the effectiveness of the spray foam system and reduce unwanted air leakage.
What does WolfSteel think?
When we do your spray foam, your building is still within our workmanship warranty.
At WolfSteel Buildings, we believe proper preparation is just as important as the insulation itself.
Install foam gap enclosures to prevent spray foam leakage, improve insulation performance, reduce air leaks, and create a cleaner finished appearance. Although they add a small upfront cost to your project, they can save you money in the long run by eliminating costly cleanup and protecting the quality of your insulation installation.
Proper installation is critical. Experienced contractors understand how to correctly seal panel gaps without compromising building performance, workmanship quality, or warranty requirements.
When spray foam insulation is part of your metal building project, foam gap enclosures are a small investment that can make a significant difference in the building’s long-term efficiency, durability, and appearance.
Check out this video where we feature foam gap enclosures.
If you’re planning to insulate your metal building with spray foam, our team can install both the spray foam insulation and foam gap enclosures to help prevent messy foam ooze and ensure a cleaner, more efficient installation.
Call us 844-941-0999
Or email us anytime at quotes@wolfsteelbuildings.com
Spray foam is an additional service that we offer when you get your building from us. This is not a standalone service.
When we install spray foam insulation, we also install foam gap enclosures to help prevent foam ooze.
