Getting concrete to your building site sounds simple, until the site itself makes access difficult.
During the site visit, we look at more than just the building location. We also check whether concrete trucks, dirt trucks, and other heavy equipment can safely enter and leave your property. Narrow driveways, limited entry points, nearby homes, and other site conditions can make access difficult. In some cases, they may prevent a concrete truck from reaching the foundation directly.
When direct access isn’t possible, you may need a concrete pump to move concrete from the truck to the foundation. This can help us complete the pour while protecting your property and surrounding areas. However, it can also add to your overall project cost.
In today’s post, we’ll explain what a concrete pump is, how it works, and why it may appear on your quote.
What is a Concrete Pump?
A concrete pumps is a machine that transfers concrete mix through pipes and hoses, allowing concrete to be poured efficiently to minimize delays that can cause cold joints that can create structural problems.
It is also used for construction sites and infrastructure projects, where concrete needs to be transported to a location that may be difficult to access or far from the source.
How does a Concrete Pump Work?

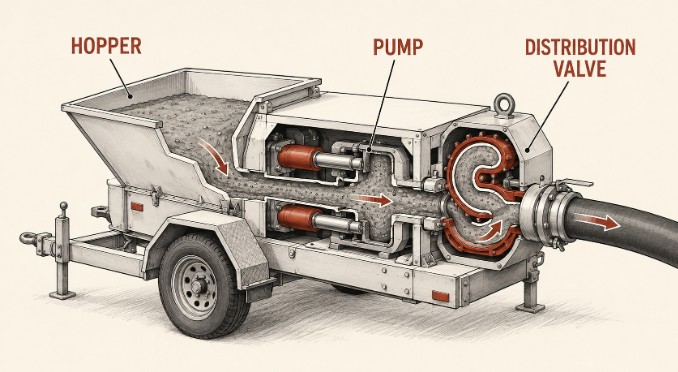

A concrete pump comprises a hopper, pump, and distribution valve. The concrete is loaded into the hopper, where it flows into the pump at a low volume, high pressure. The pump compresses the concrete and generates enough pressure to move it through the hoses.
The distribution valve controls the concrete flow as the pump moves it to its final destination, such as a foundation or slab. Concrete pumps can handle different levels of concrete viscosity depending on the type of construction.
Check out this video as Adbeel walks us through a concrete pour using a concrete pump and shows how the process works.
Why Do We Use a Concrete Pump?
We use a concrete pump when a concrete truck can’t safely reach the foundation. This gives our crew another way to get the concrete where it needs to go.
It also helps us move concrete over, around, or through areas that would otherwise make a traditional pour difficult.
But getting concrete from the truck to the foundation isn’t the only advantage. A concrete pump can also make the concrete placement process more accessible, efficient, and controlled.
Here are some of the key benefits a concrete pump can provide:
1. Improved Access to Difficult Areas
Concrete pumps allow our team to place concrete in areas that a concrete truck cannot reach directly. This gives us more flexibility when working around narrow driveways, tight entry points, landscaping, existing structures, or other obstacles.
2. More Efficient Concrete Placement
By eliminating the need for manual transport, concrete pumps speed up the construction process, reducing labor requirements and project timelines.
Concrete pumps allow for continuous and steady concrete flow, reducing interruptions and boosting overall construction productivity.
3. Safer Jobsite Conditions
Pumping the concrete can reduce the amount of manual handling required during the pour. This allows our crew to work farther from moving equipment, helping create a safer and more controlled jobsite.
4. A Practical Solution for Complex Projects
Every building site is different, and not every property provides ideal access for a concrete truck. When pouring the concrete becomes too challenging, a concrete pump provides another option for getting the concrete where it needs to go.
Depending on the project, site layout, and access conditions, we may use a boom pump or line pump.
5. Consistent Concrete Placement
The controlled flow of concrete through pumps maintains consistent concrete quality, resulting in a uniform finish throughout the construction project. Concrete pumps allow accurate placement of concrete, ensuring it reaches the desired location without spillage or wastage.
What are the Three Types of Concrete Pumps?
There are three main types of concrete pumps: line pumps, boom pumps, and telebelt pumps. Each type uses a different method to move concrete and offers advantages depending on the project, site layout, and access conditions.
For most metal building projects, the two types you’re most likely to encounter are line pumps (ground pumps) and boom pumps, which we’ll cover in more detail below.
The third type, a telebelt pump, uses a conveyor belt system to transport and place concrete across the jobsite. Depending on the equipment, a telebelt can reach up to 100 feet and rotate 360 degrees, giving the crew greater flexibility when placing concrete in hard-to-reach areas.

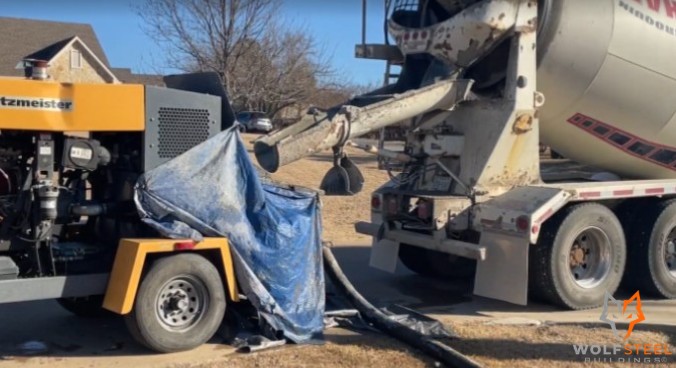

Line Pump
Line pumps, also referred to as ground pumps, serve as versatile construction equipment that can pump concrete mix through hoses at ground level or in areas with limited accessibility.
These are often used in residential construction projects for placing concrete in foundations, slabs, driveways, and other ground-level structures, where you may not be able to park the concrete pump truck in an accessible location.
Moreover, this type of pumps are suitable for projects that don’t require extensive reach or elevation. They are also commonly used in projects like home additions, garages, patios, and sidewalks.

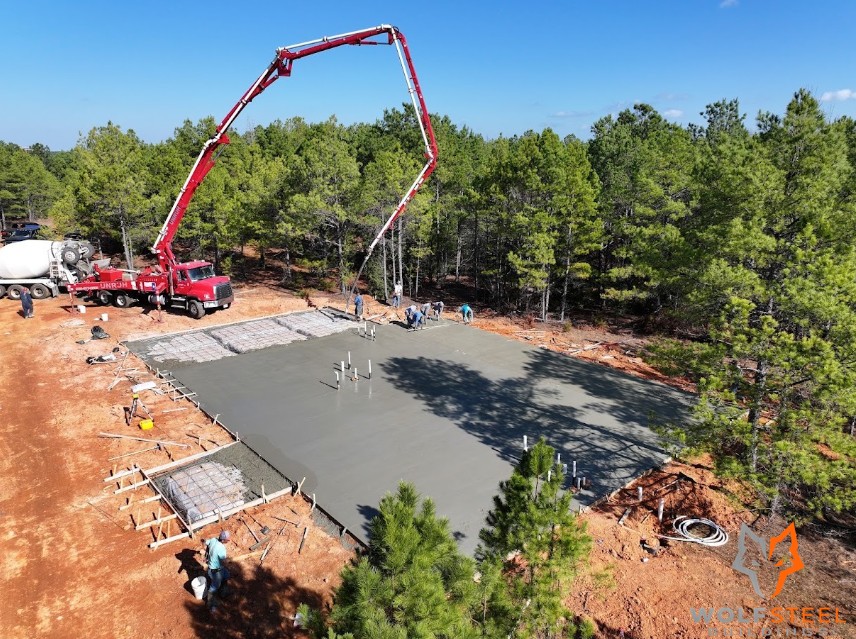

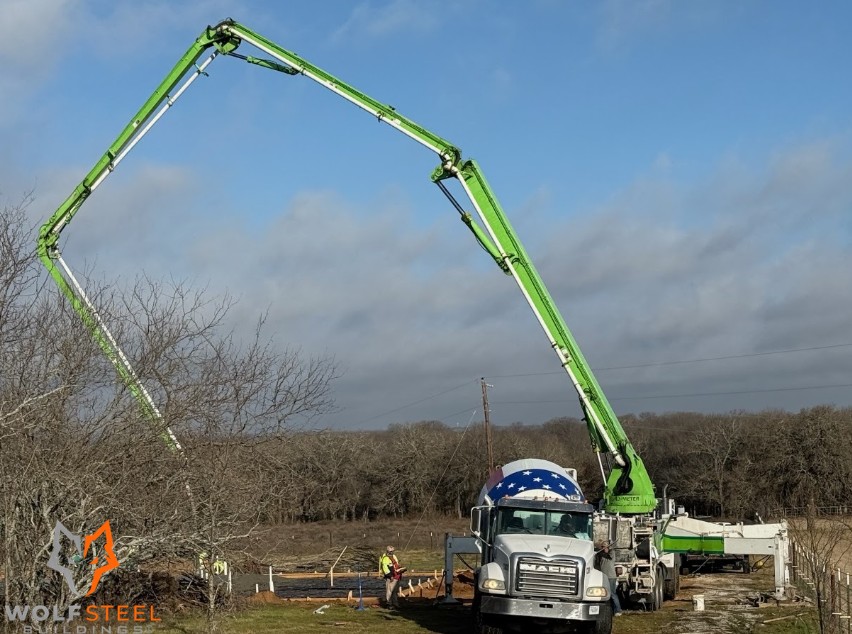

Boom Pump
Contrary to ground-level line pumps, Boom pumps extend through the air. A remote-controlled robotic arm, known as a boom, is affixed to a truck or semi-trailer for precise concrete placement, accommodating significant concrete volumes. The truck typically remains stationary throughout the pour pump’s hopper.
Boom pumps are commonly used for areas that are difficult to reach by ground pump. It is usually used in the construction of tall structures, such as skyscrapers and apartment complexes. If your slab is larger than 2000 square feet, an overhead boom pump may save time and reduce labor.
Their ability to reach great heights makes them important for delivering concrete to upper floors. Other common applications of boom pumps are building bridges and overpasses, large-scale infrastructure projects, and commercial construction.
How Much Does Concrete Pump Rental Cost?
When we offer a quote for concrete pump rental, the cost will vary depending on the complexity of the square footage, site conditions, pour date, and location.
In the Dallas/Fort Worth area, a line pump for a 500 to 2,400 square foot slab will cost around $900 to $2,000. A boom pump will cost approximately $1,100 to $2,500. This charge could be included in your site preparation costs, as the need for a pump will only be determined after an on-site inspection by our site coordinator.
What does WolfSteel think?
At WolfSteel Buildings, we don’t add a concrete pump simply because it’s convenient. We recommend one when site conditions make it a safer and more practical way to place concrete.
Imagine a fully loaded concrete truck weighing around 60,000 pounds driving across your driveway. That much weight can potentially cause cracks or damage, and we want to help protect your property. The same applies to sandy, soft, or muddy ground, where a heavy truck could get stuck or damage the site.
This is why we take time assessing your site during the site visit to make sure we are able to recommend the best and safest way to get the concrete to your site.
Our goal is simple: place the concrete where it needs to go while minimizing the risk to your property and jobsite.
Why Is a Concrete Pump an Additional Cost?
If your project requires a concrete pump, you’ll see an additional cost on your quote. That cost covers more than just the equipment itself. It can include specialized pumping equipment, transportation, setup, and the skilled personnel needed to operate the pump during the concrete pour.
We understand that seeing an additional line item on your quote can raise questions. The goal isn’t to add unnecessary costs, it’s to account for the equipment and labor your specific site requires to complete the concrete work properly.
Is a Concrete Pump Worth the Additional Cost?
In the right situation, yes. A concrete pump can help us place concrete more efficiently, reach areas that a concrete truck cannot, and reduce the need to drive heavy equipment across sensitive areas of your property.
The right pumping method depends on your project’s specific conditions. We consider factors such as site accessibility, available space, distance to the foundation, elevation, and the complexity of the concrete pour when determining what equipment will work best.
Depending on those conditions, we may use a line pump, boom pump, or telebelt to get the concrete where it needs to go.
Ultimately, planning a Texas metal building involves more than choosing the building size and color. From site preparation and permitting to concrete, building installation, insulation, and accessories, each part of the project needs to work together.
At WolfSteel Buildings, we handle the process from start to finish so you don’t have to coordinate every piece on your own. And when site conditions call for specialized equipment, like a concrete pump, we’ll explain why it’s needed, what it does, and how it affects your project cost.
