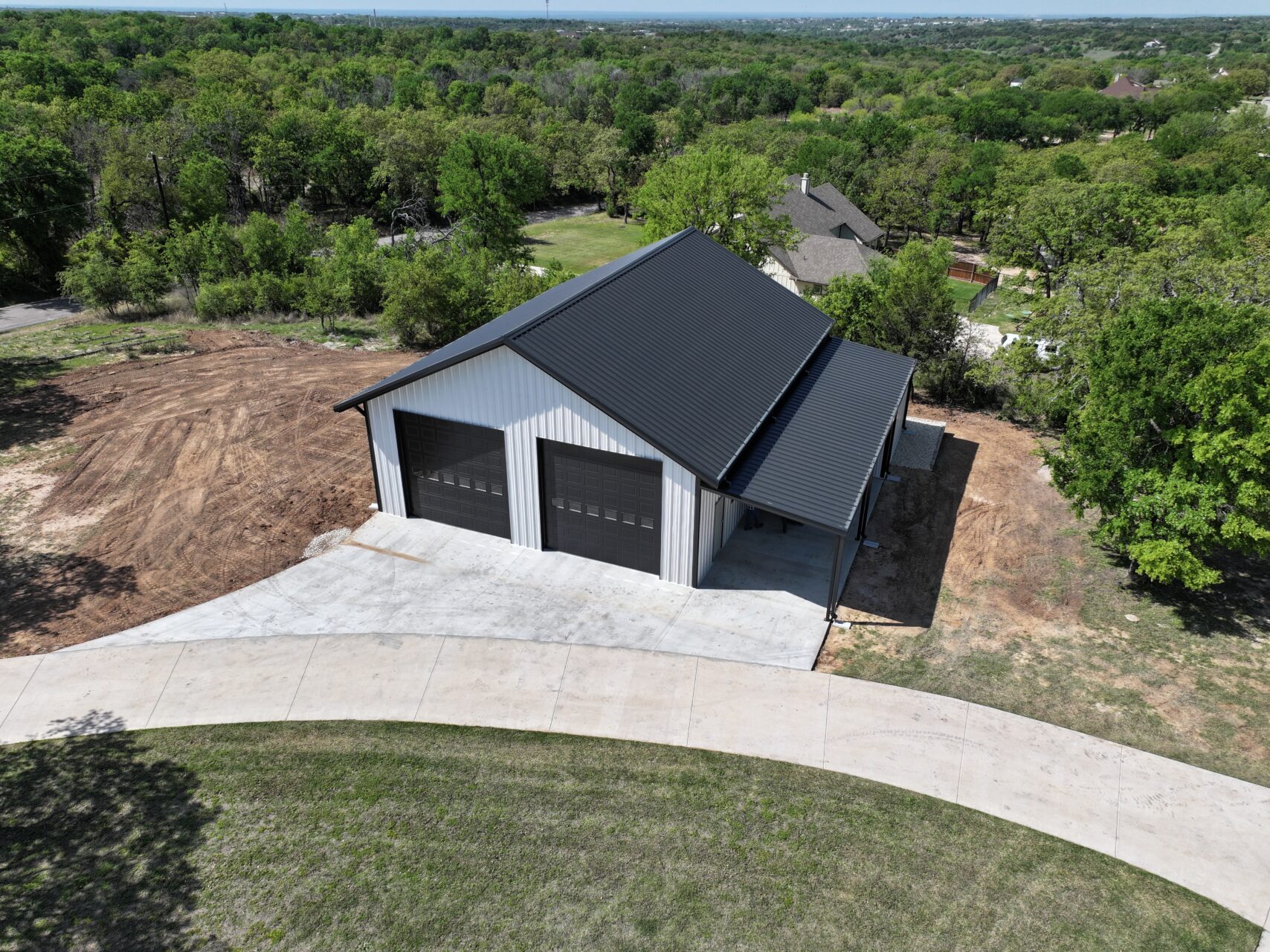

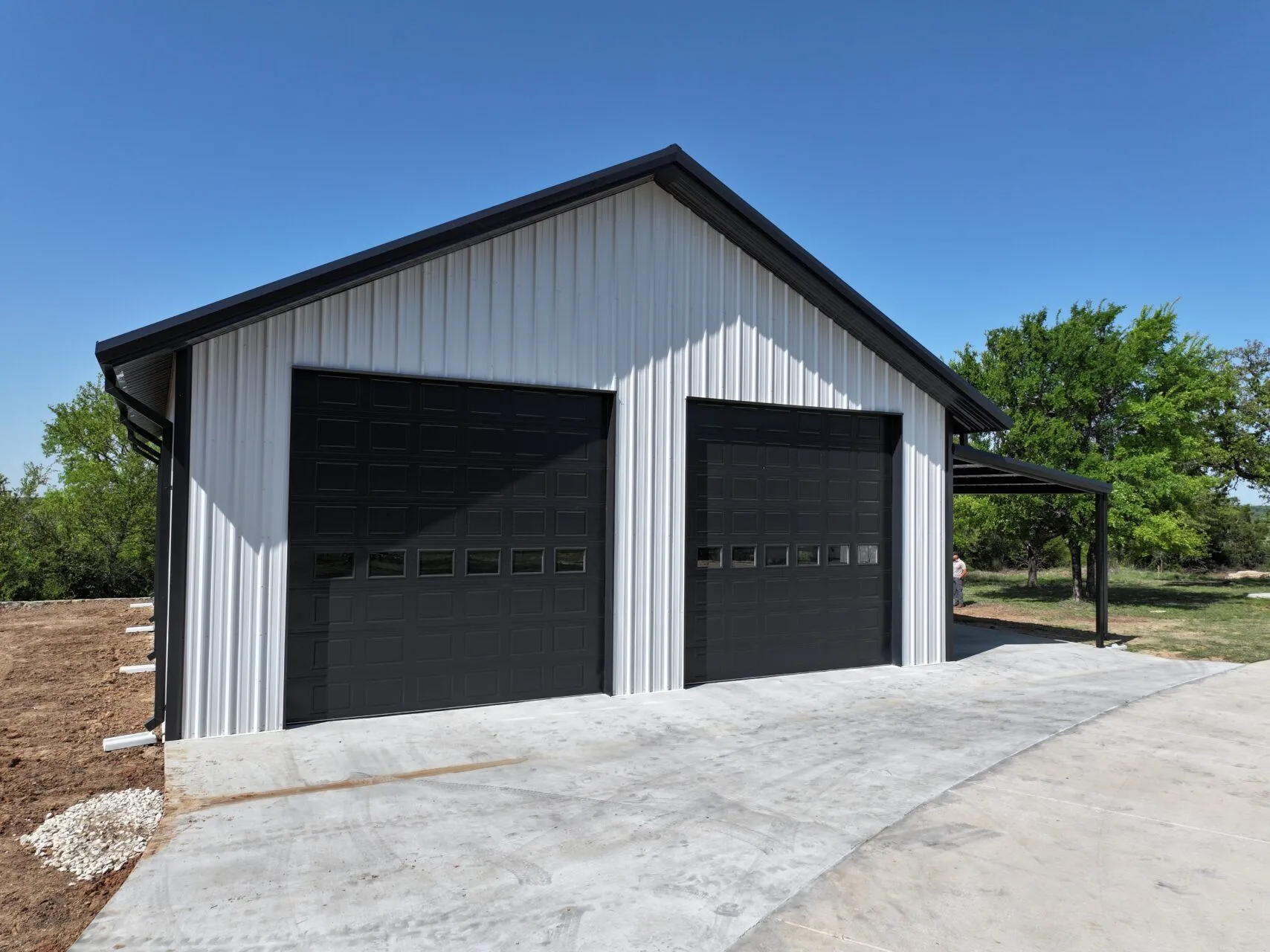

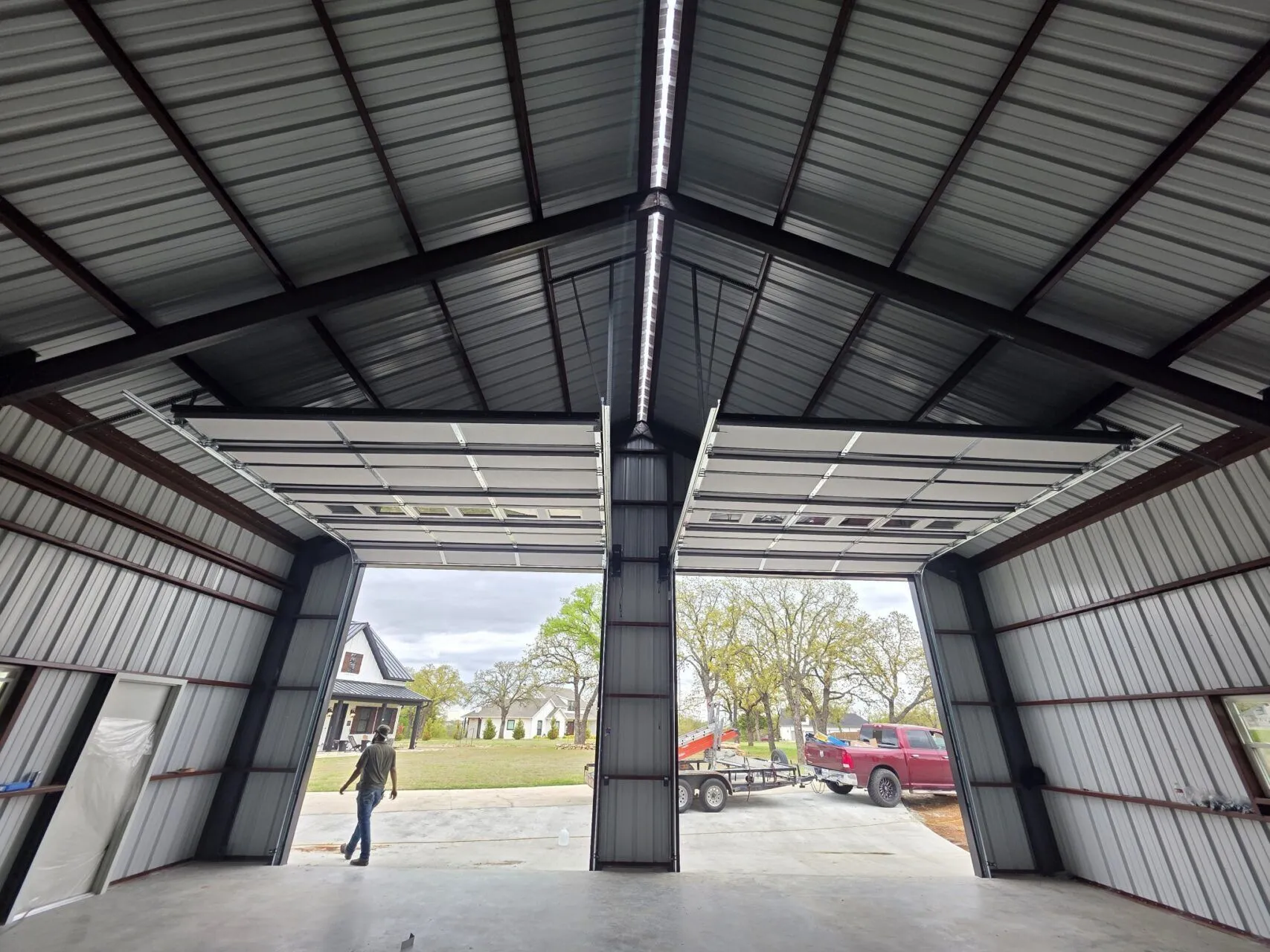

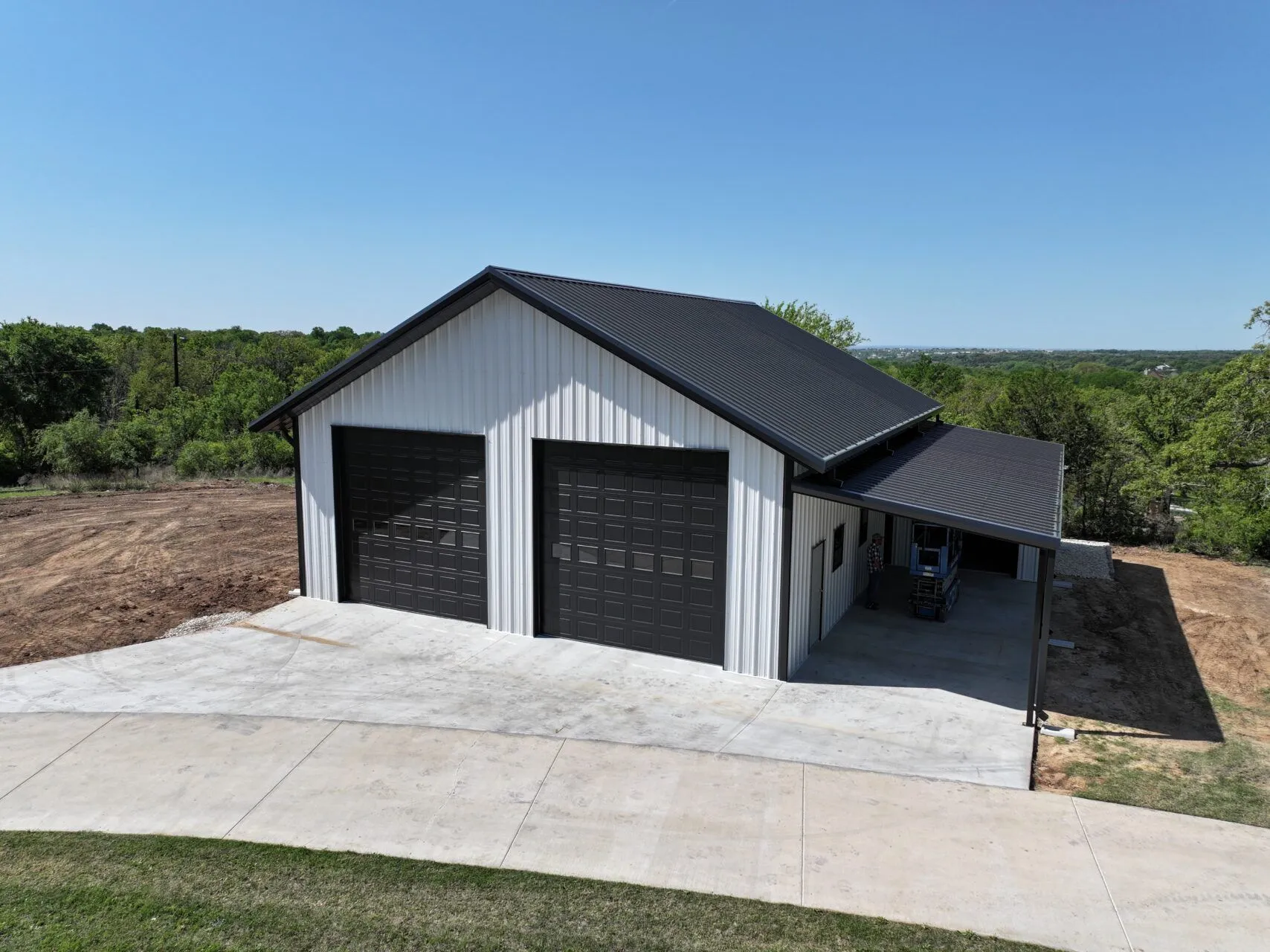

Pack, check out this 40×50 weld up metal garage building with custom porch in Weatherford, Texas that will be used as storage and workshop. Customize your lean-to porch with a fully open space and an enclosed area. Another great feature for this 40×50 weld up metal garage is the painted spray foam for the entire building.
Building Description:
- Main Building: 40′ Wide x 50′ Long x 15′ Tall

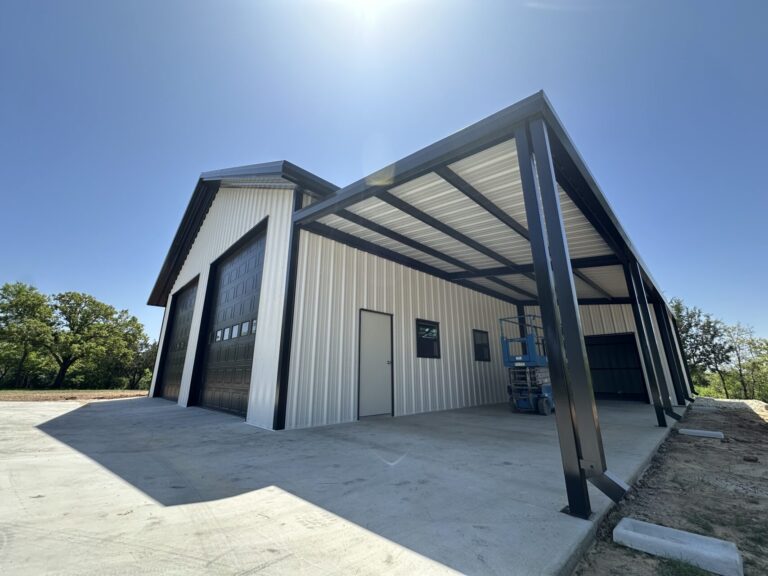

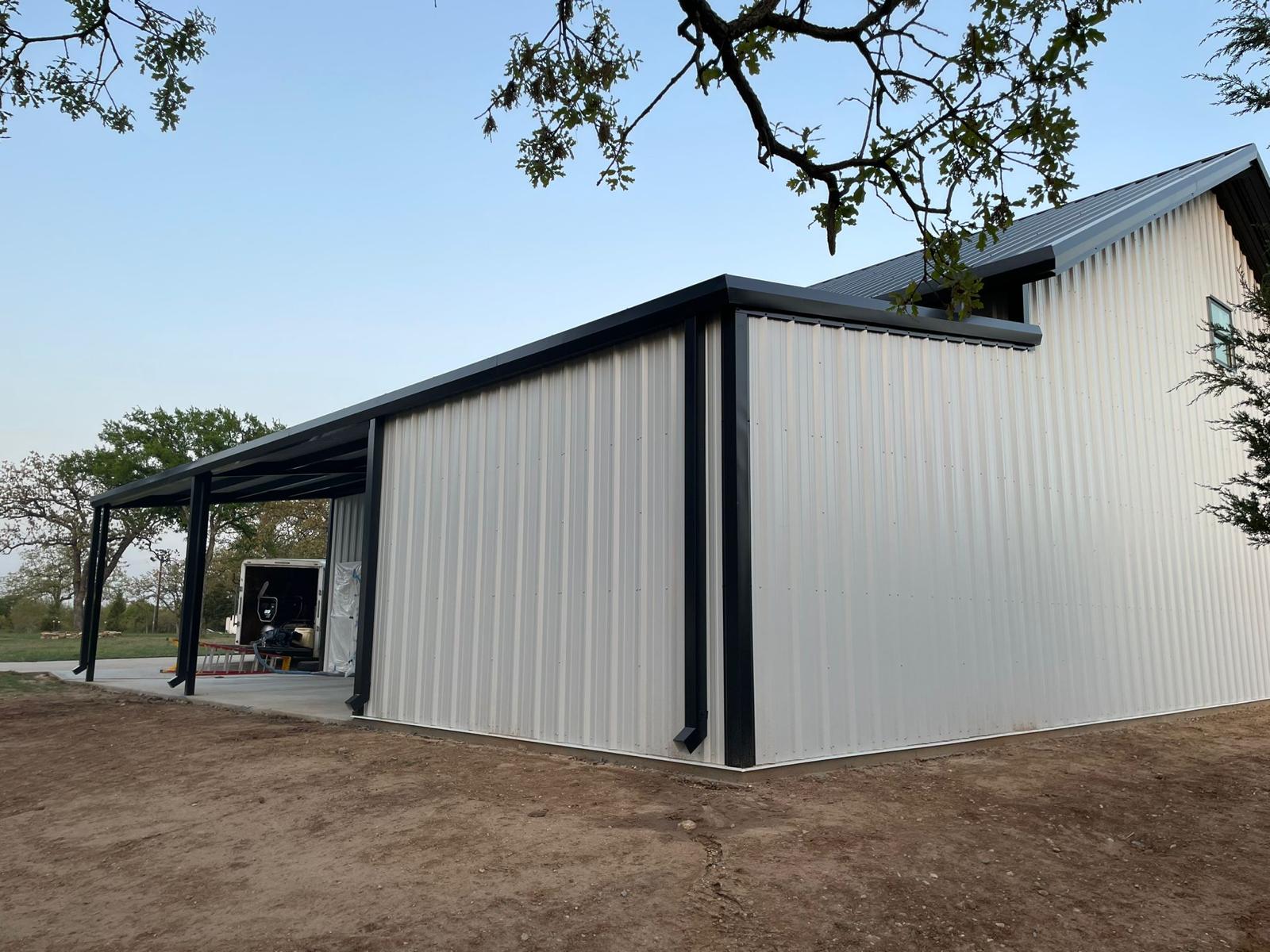

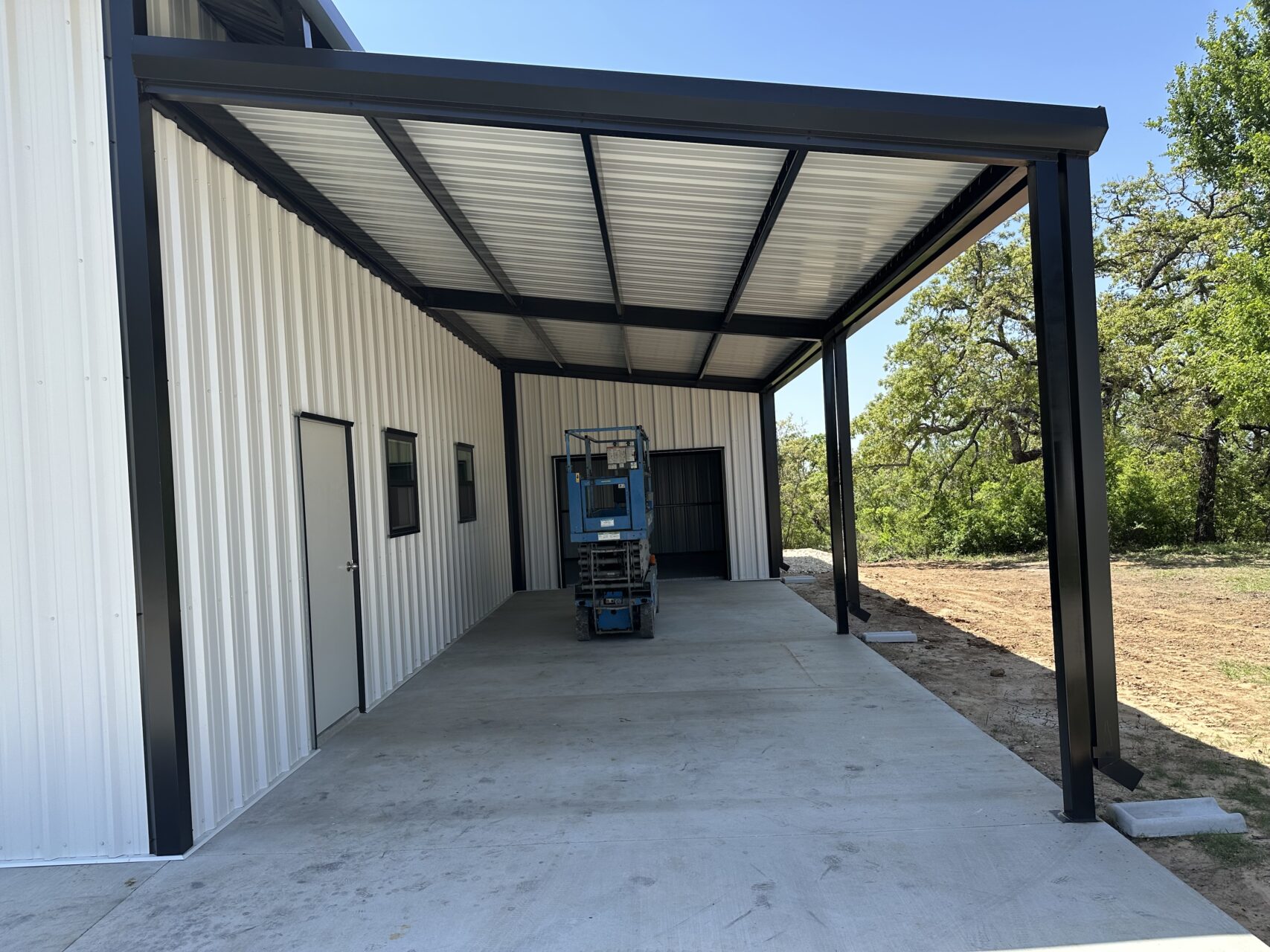

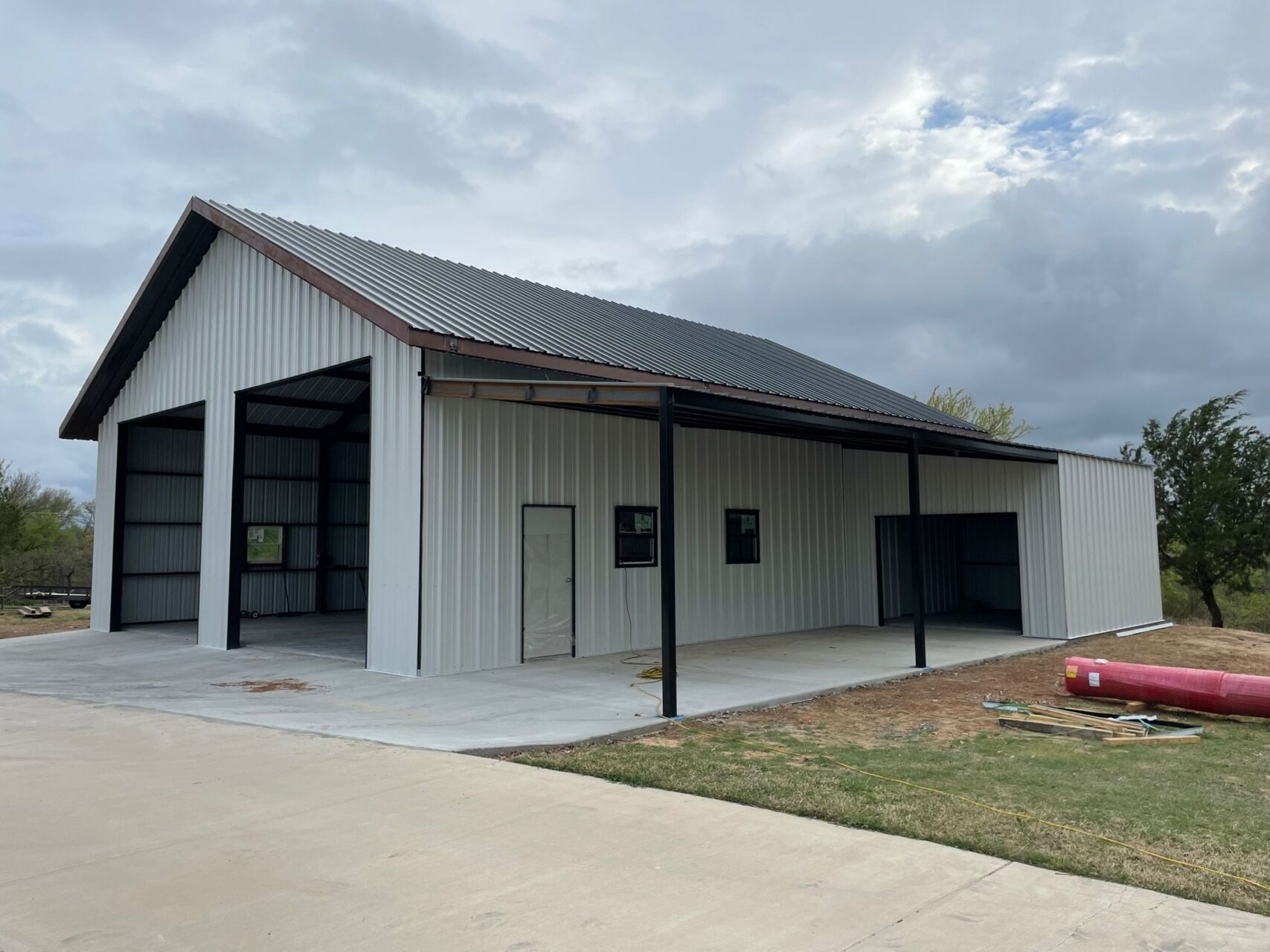

- Side Lean-to: 14′ Wide x 50′ Long x 10’/12′ Tall
- Enclosed Back Section: 14’x16’10”

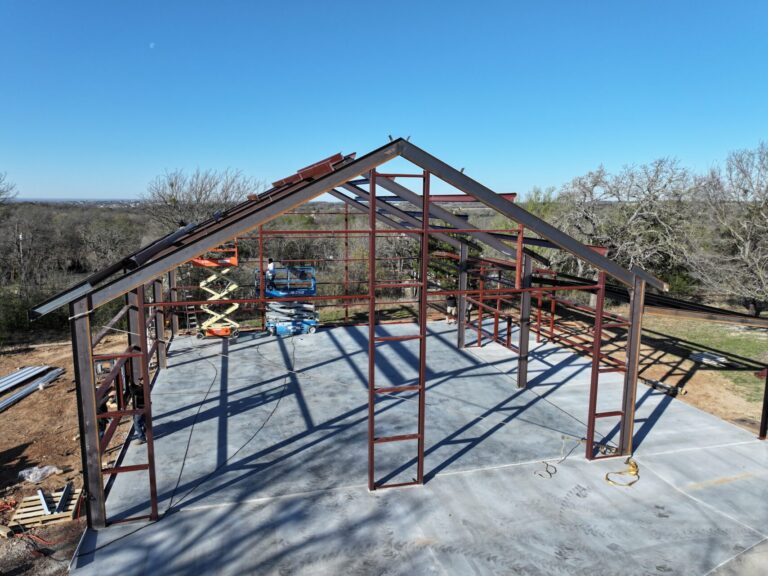

- Weld Up Red Iron
- 26 Gauge PBR Panels
- 6/12 Metal Roof Pitch
- 2 – Closed Vertical Sides
- 2 – Closed Vertical Ends

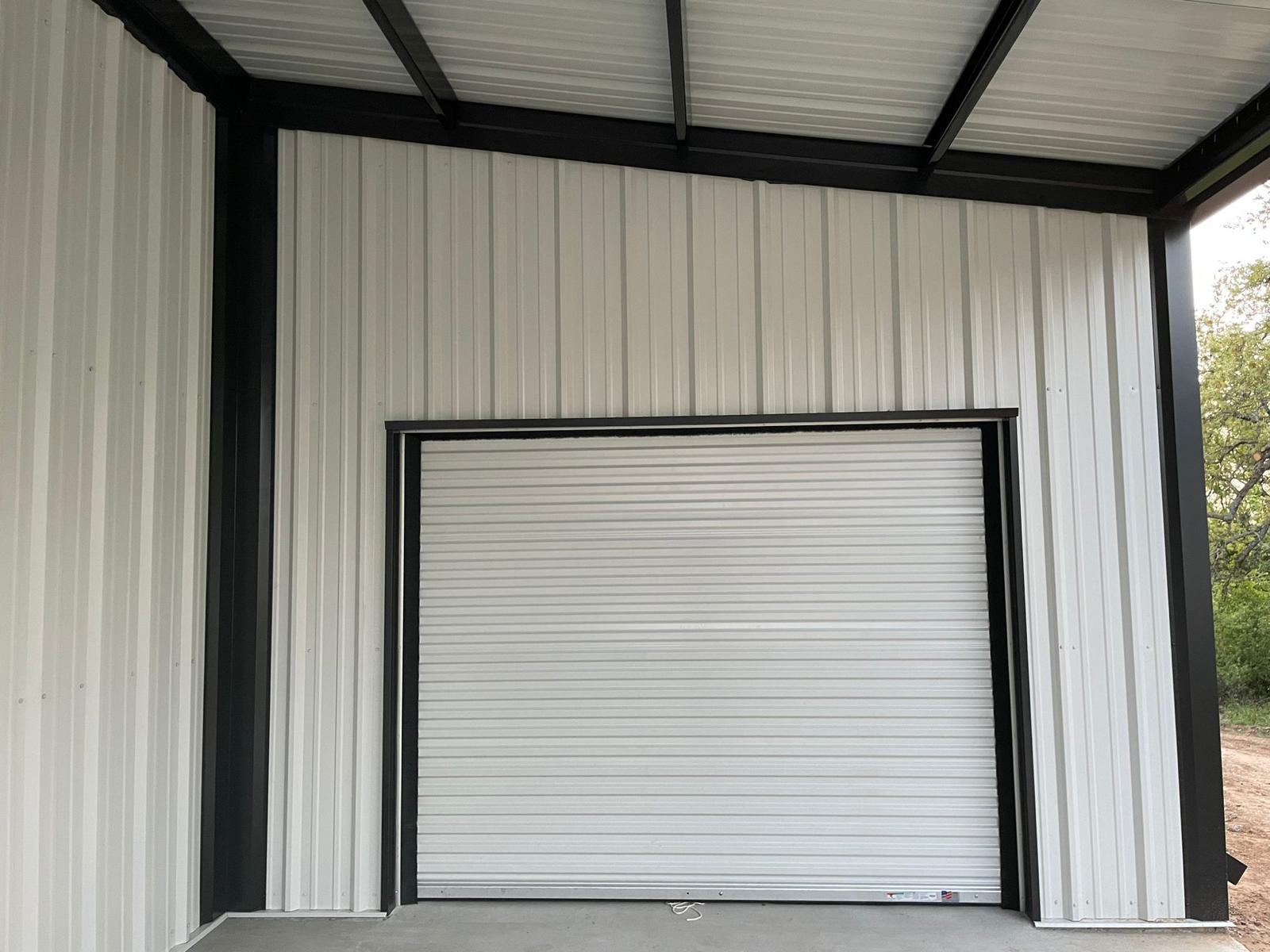

- 1 – 9′ W x 7′ H Roll Up Door

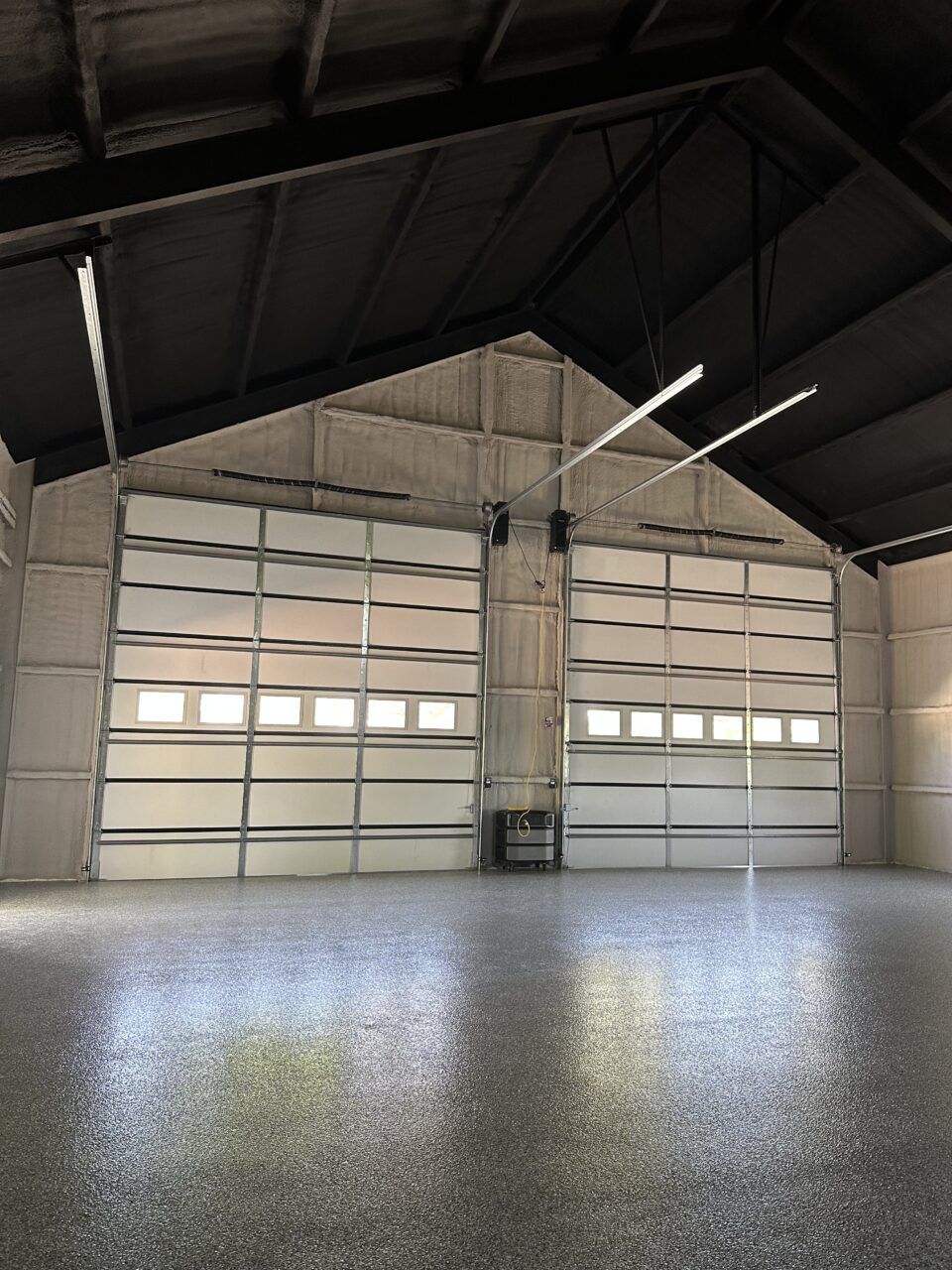

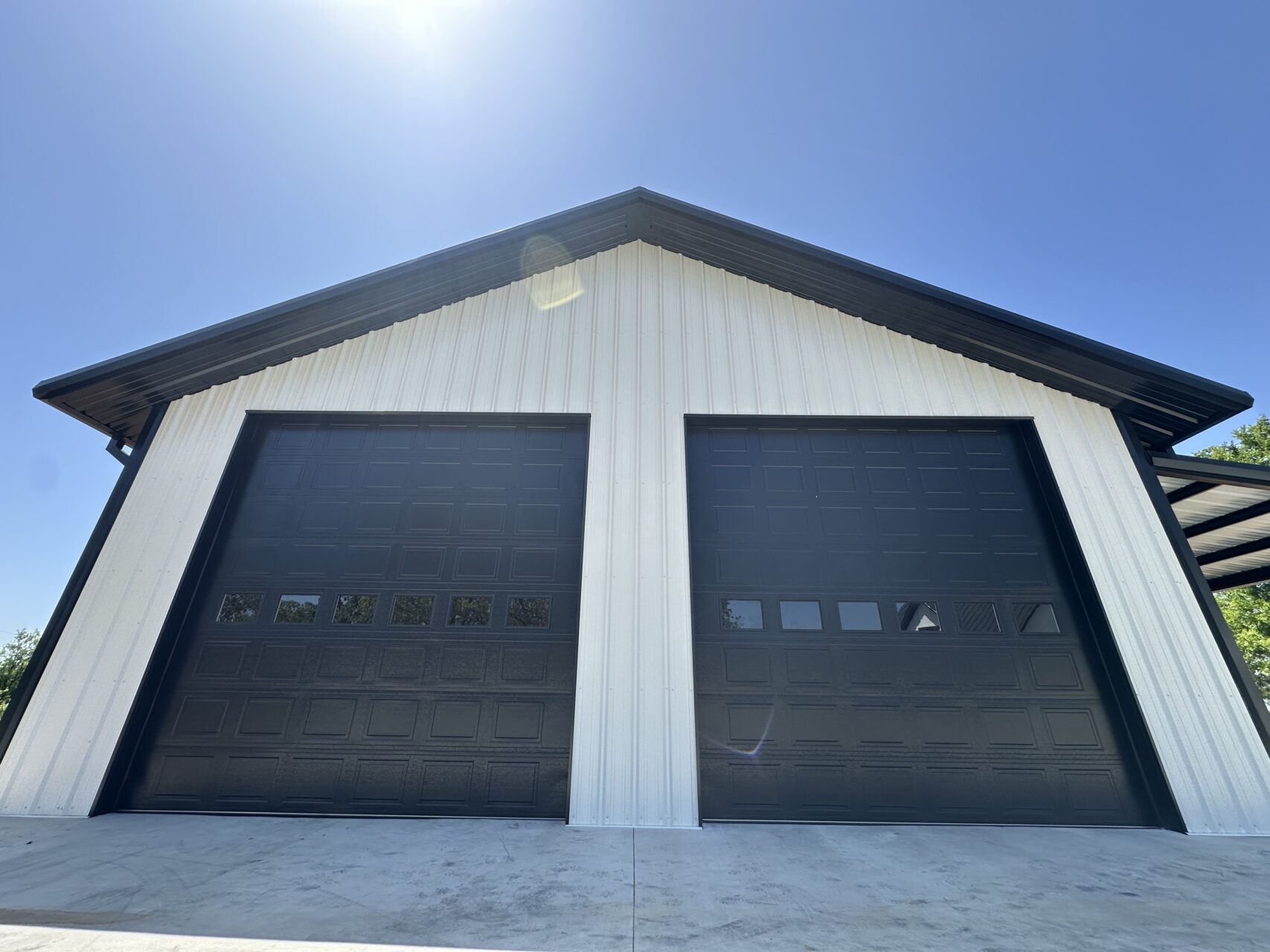

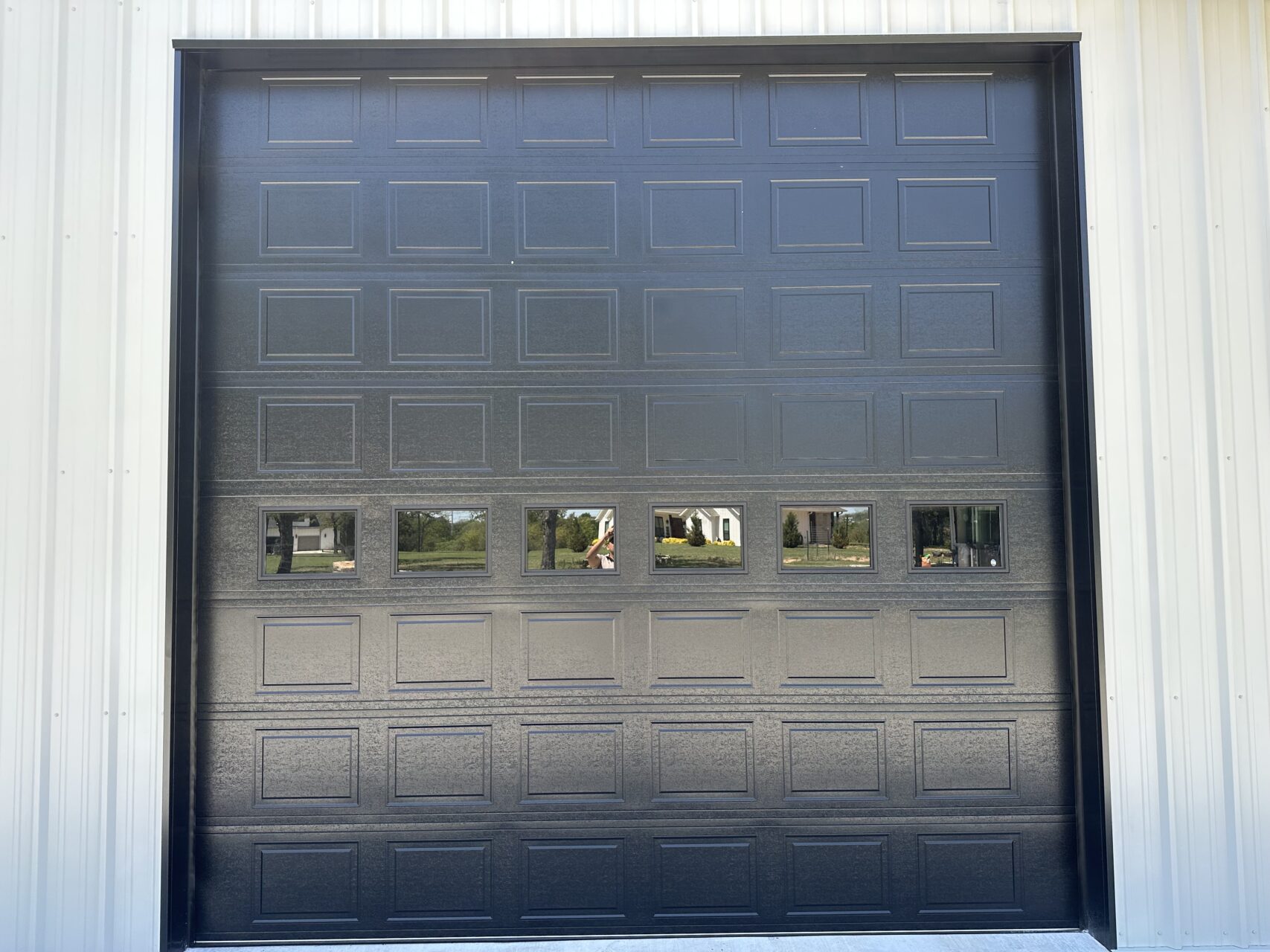

- 2 – 14′ W x 14′ H Black Overhead Door with Opener & Windows (Insulated in Raise Short Panel Design)
- 2 – 36″ W x 84″ H Steel Door
- 5 – 36″ W x 36″ H Double Pane Windows

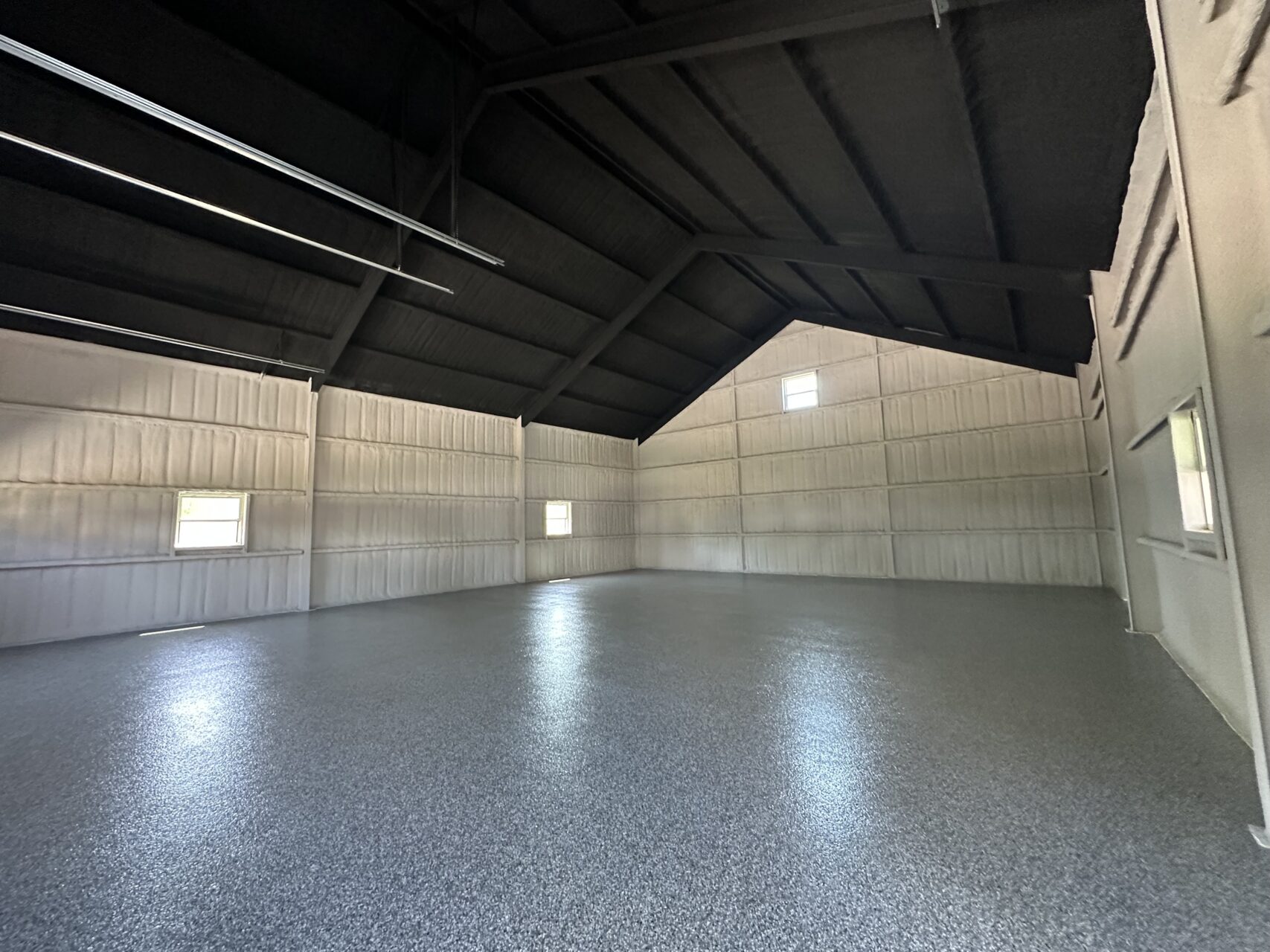

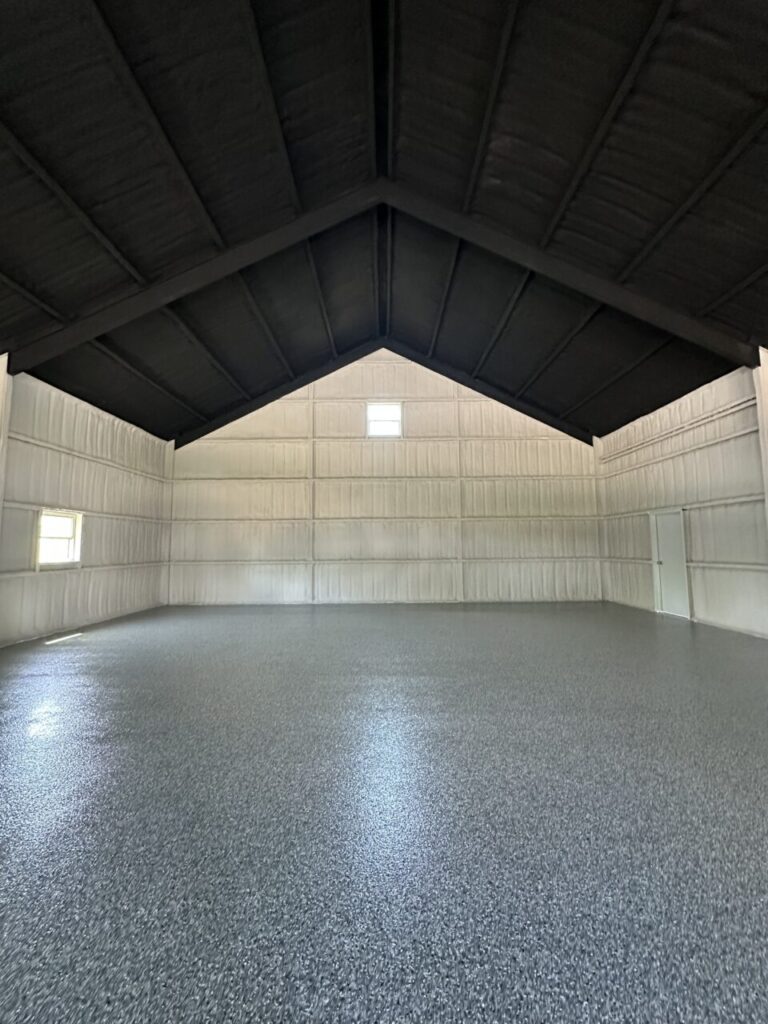

- Painted Closed-Cell Spray Foam (Roof & Walls)
- Walls – Soft Grey
- Roof – Black
- Foam Gap Enclosure
- Base Trim

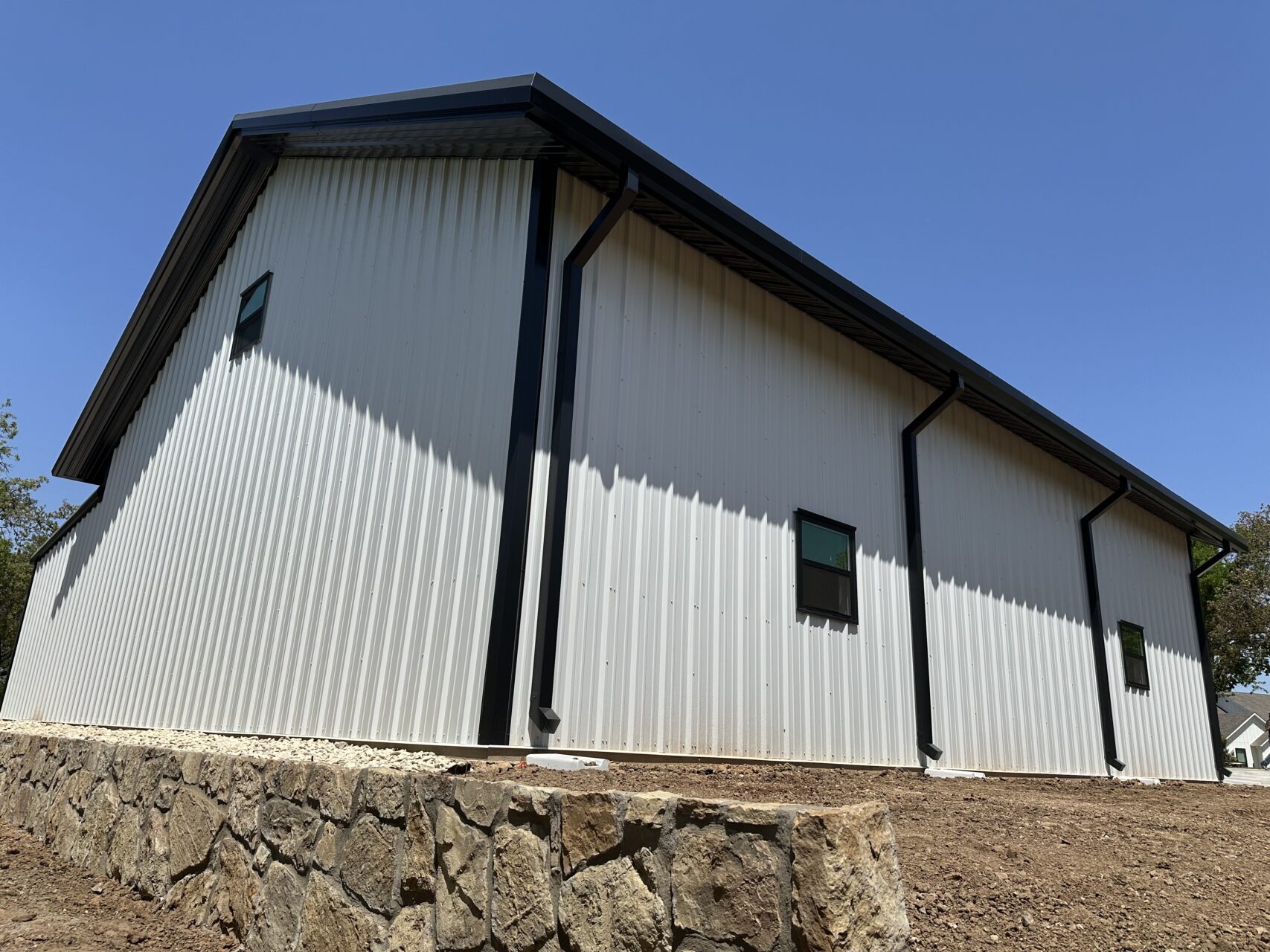

- Gutters & Downspouts
- Painted Frame (Black)
- Color Matching Screws
- 2′ Overhang

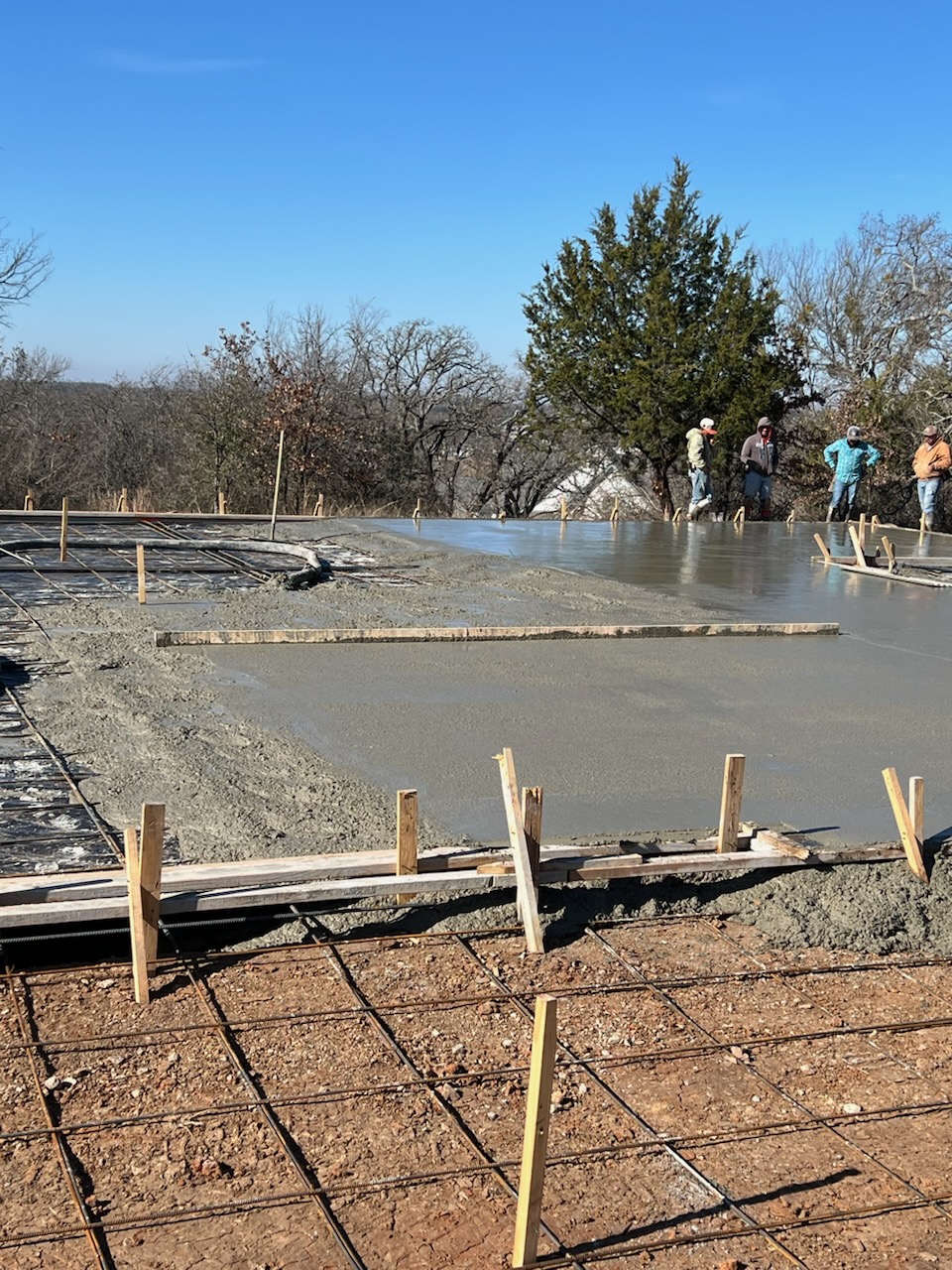

- 4″ & 6″ Concrete Slab (Main and Lean-to)
- Main building has the 6″ slab because of the car lift.
- Perimeter Footings & Internal Cross Beam
- Site Preparation
- Colors:
- Roof: Black
- Sides/Ends : White
- Trim/Gutters: Black
