Texas Metal Building Foundation

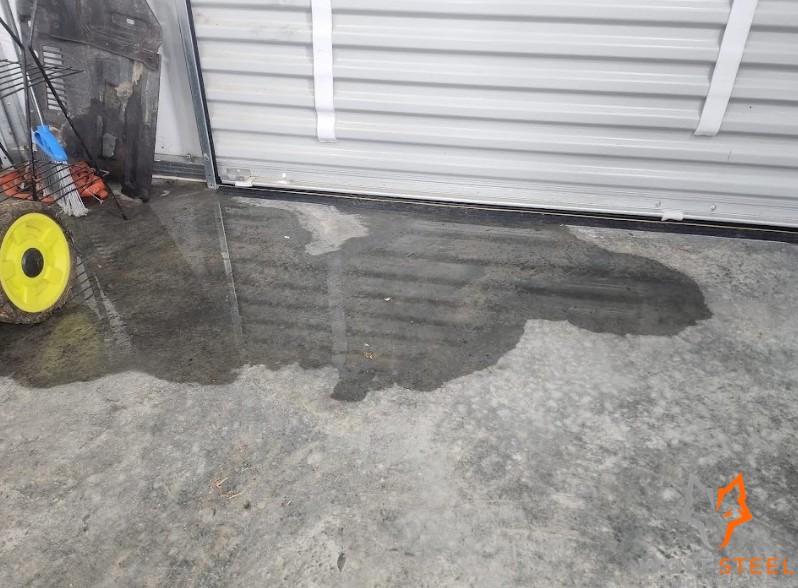

One of the most common problems we see with metal building projects is water finding its way underneath the sheet metal or through the bottom of garage doors. As our Sales Director, Ernie, puts it, “Water is the biggest enemy of your metal building.”
So, how do you prevent it?
The best solution starts before your building is ever installed with the right concrete work. While there are band-aid solutions for addressing water intrusion after a building is already in place, proper foundation and concrete details can help prevent these problems from happening in the first place.
In this blog, we’ll explain how our concrete notch edge detail helps protect your metal building from water intrusion. We’ll cover what a notch edge detail is, why it’s important, and how this small but critical detail can help prevent costly headaches down the road.
What is a Concrete Notch Edge Detail?
A concrete notch edge detail, also known as a brick ledge, is a groove along the edge of a concrete slab that overlaps with the metal building panel, creating an effective barrier against water and foreign elements.
Why Does Adding the Concrete Notch Details Matter?

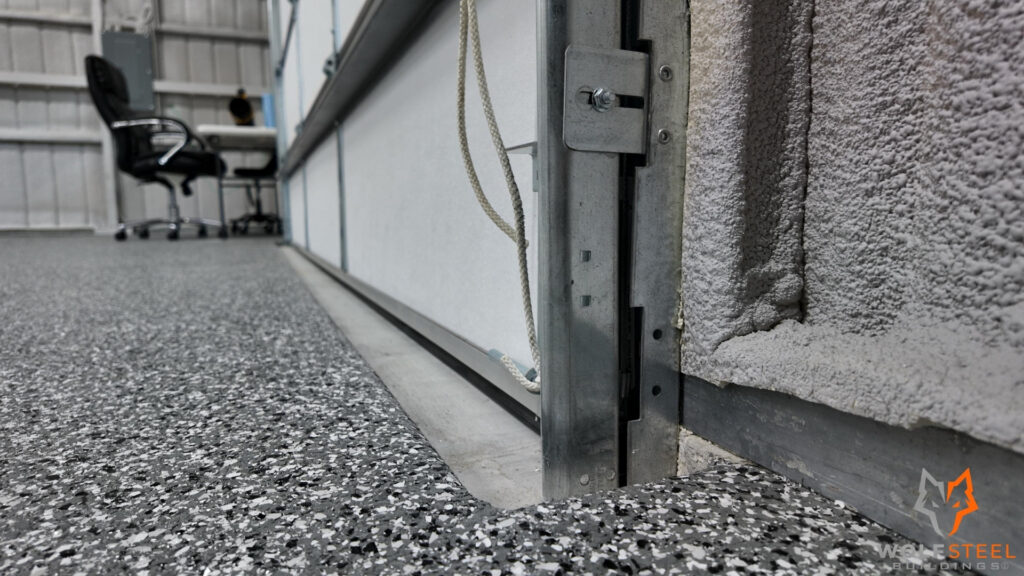

Every foundation we pour includes notches for your doors and your sheet metal. These notches are NON-NEGOTIABLE for us.
These are not just a nice touch, it is the reason we started doing our own concrete in the first place.
When the slab and the framings are not coordinated, gaps and misalignment can occur, leading to leaks and water seepage at the building’s base which may cause costly damage over time.
It’s important to understand that a concrete notch edge detail is not a one-size-fits-all solution. The dimensions will vary based on several factors, including your door sizes, frame sizes, whether your building includes masonry, and the type of metal building being constructed.
We use different notch edge detail measurements for red iron metal buildings, tubular metal buildings, and projects where an exterior facade will be installed over the sheet metal. Every project has its own requirements, which is why these details need to be planned before construction begins.
Our planning department works through these details in advance and creates custom floor plans for every project. This allows our team to account for the specific dimensions and details of your building before we ever arrive on site.
As we like to say on our team, “We build on paper, then, execute on site.”
That preparation helps ensure everyone, from our planning and design teams to the crews in the field is working from the same plan. By getting these details right before construction begins, we can help prevent water intrusion issues and costly corrections later.
Key Benefits of Adding a Concrete Notch Edge Detail
1. Helps Protect the Building Foundation
A concrete notch edge creates an added barrier along the perimeter of the foundation. This can help limit water and debris from getting beneath the metal building walls while also helping keep pests from entering through gaps at the slab edge. This added detail helps protect the foundation and supports the long-term durability of the building.
2. Creates a Cleaner, More Finished Look
A notch edge isn’t just functional, it can also improve the overall appearance of your metal building. By creating a defined edge where the building walls meet the concrete foundation, it gives the structure a cleaner, more finished and professional look.
What Does WolfSteel Think?

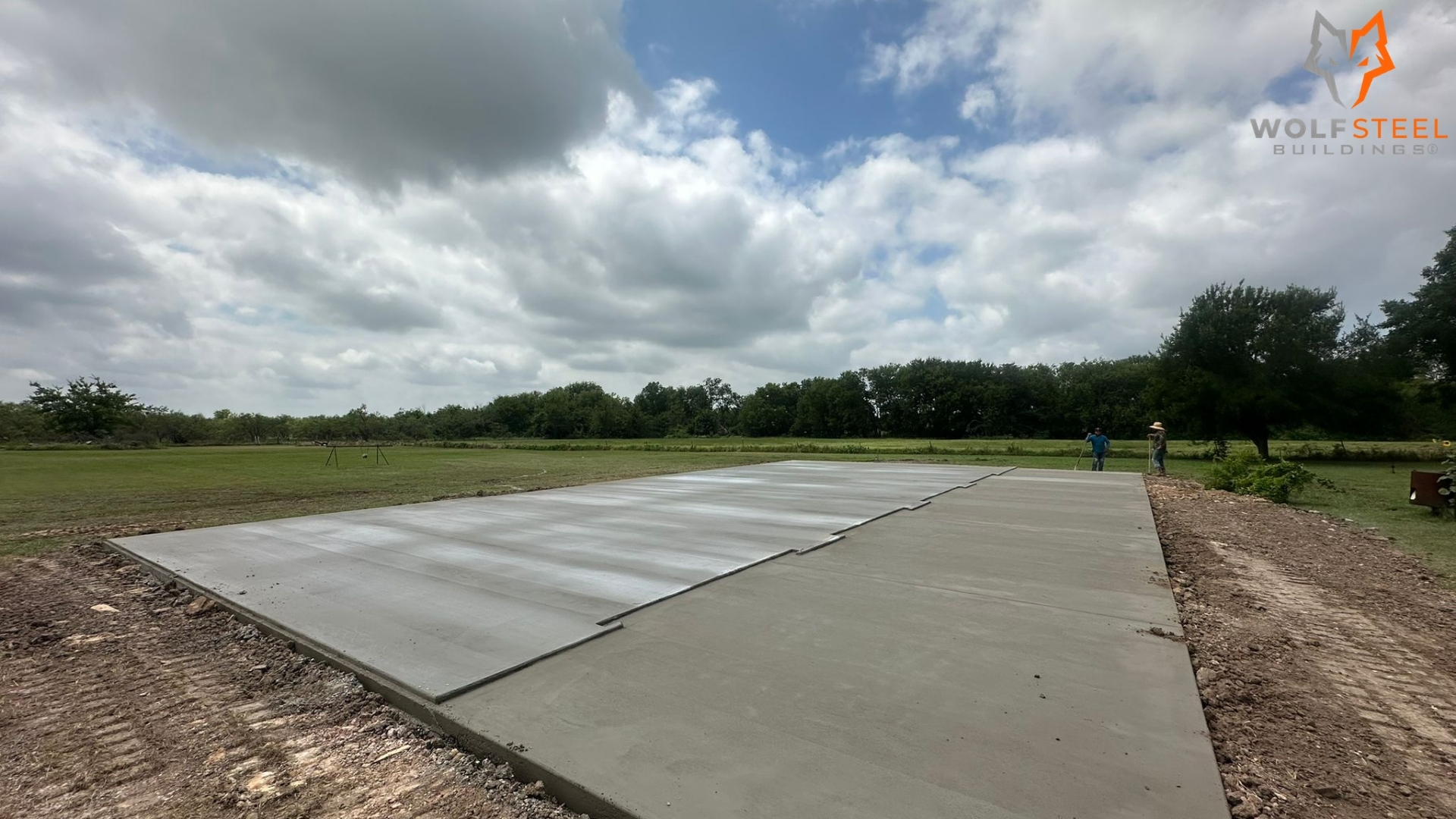

When it comes to pouring your slab, precision matters. Your foundation must account for both the notch edge and the dimensions of your metal building. If there’s any misalignment, you could face costly corrections or worse, water damage that can compromise the integrity of your building.

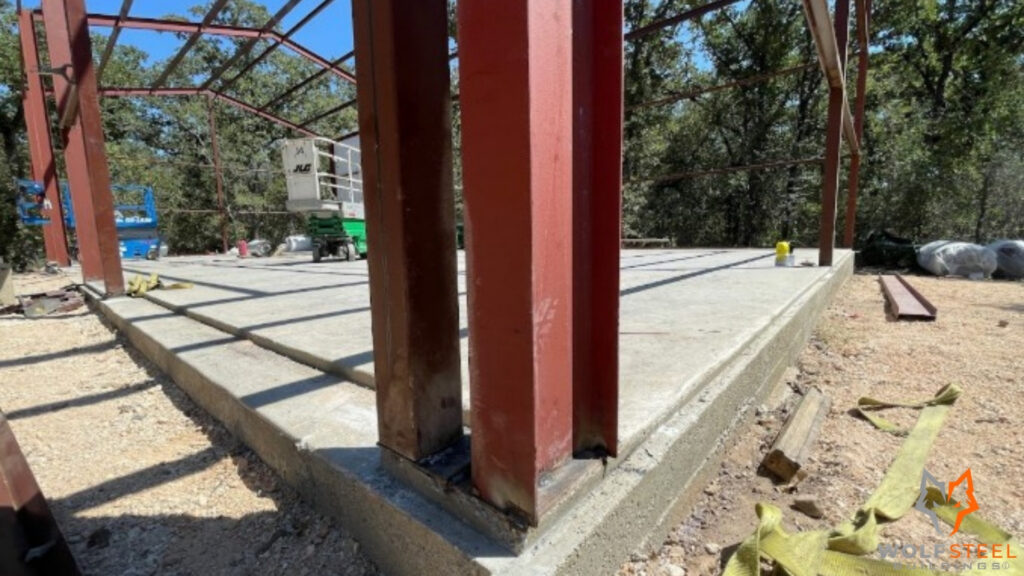

At WolfSteel Buildings, we recommend building the main building slab to the exact frame dimensions first. Then, add a notch with a 1 ½ inch drop along the edge. It’s also important to ensure that any concrete around the slab slopes away from the building.
Here is a basic representation of how we do the concrete notch edge detail. This can vary based on design and any exterior facade such as masonry, stucco, stone, etc.
Choosing the right concrete provider is critical. If your contractor doesn’t understand how to properly form and finish a notch edge, your steel installation team could face serious challenges.
Here at WolfSteel Buildings, we eliminate that risk by handling both the concrete foundation and the steel building construction. We plan for the notch edge detail from day one, ensuring accurate alignment, better protection, and a seamless build from start to finish.
